TEXAS INSTRUMENTS LP5907SNX-1.2/NOPB 固定电压稳压器, LDO, 2.2V至5.5V, 120mV压差, 1.2V输出, 250mA输出, X2SON-4
* Input Voltage Range: 2.2 V to 5.5 V * Output Voltage Range: 1.2 V to 4.5 V * Output Current: 250 mA * Stable with 1-µF Ceramic Input and Output Capacitors * No Noise Bypass Capacitor Required * Remote Output Capacitor Placement * Thermal-Overload and Short-Circuit Protection * –40°C to 125°C Junction Temperature Range for Operation * Low Output Voltage Noise: RMS * PSRR: 82 dB at 1 kHz * Output Voltage Tolerance: ±2% * Virtually Zero IQ Disabled: * Very Low IQ Enabled: 12 µA * Start-up Time: 80 µs * Low Dropout: 120 mV typical
输出接口数 1
输出电压 1.2 V
输出电流 250 mA
供电电流 25µA ~ 425µA
针脚数 4
静态电流 0.25 mA
输出电容类型 Ceramic
跌落电压 120 mV
调节输出数 1
过温保护 Yes
输入电压Max 5.5 V
输入电压Min 2.2 V
输出电压Min 1.2 V
输出电流Max 0.25 A
工作温度Max 85 ℃
工作温度Min -40 ℃
精度 ±2 %
输入电压 5.5 V
安装方式 Surface Mount
引脚数 4

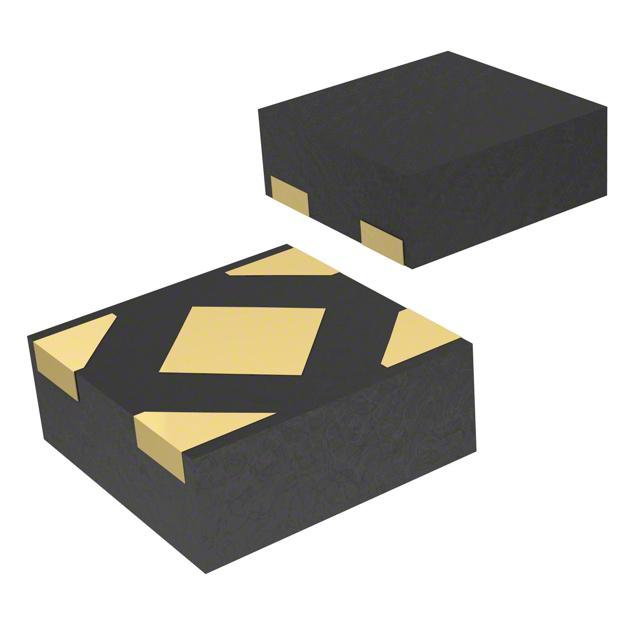

封装 X2SON-4
封装 X2SON-4
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
香港进出口证 NLR
