LDO(低压降)线性电压调节器,STMicroelectronics,250mA 至 500mA### LDO(低压降)线性电压调节器,STMicroelectronics低压降或 LDO 为线性电压稳压器。 我们有多种系列的线性稳压器。 LDO 稳压器可在输入 - 输出差分电压较小时运行。 LDO 电压稳压器可提供快速瞬态响应、宽输入电压范围、低静态电流、低噪声、高 PSRR。
LDO(低压降)线性稳压器,STMicroelectronics,250mA 至 500mA
### LDO(低压降)线性电压调节器,STMicroelectronics
低压降或 LDO 为线性电压稳压器。 我们有多种系列的线性稳压器。 LDO 稳压器可在输入 - 输出差分电压较小时运行。 LDO 电压稳压器可提供快速瞬态响应、宽输入电压范围、低静态电流、低噪声、高 PSRR。
欧时:
### LDO(低压降)线性稳压器,STMicroelectronics,250mA 至 500mA### LDO(低压降)线性电压调节器,STMicroelectronics低压降或 LDO 为线性电压稳压器。 我们有多种系列的线性稳压器。 LDO 稳压器可在输入 - 输出差分电压较小时运行。 LDO 电压稳压器可提供快速瞬态响应、宽输入电压范围、低静态电流、低噪声、高 PSRR。
立创商城:
LDK130M10R
得捷:
IC REG LINEAR 1V 300MA SOT23-5
艾睿:
Maintain a steady voltage level with this LDO LDK130M10R linear regulator from STMicroelectronics. It has an overall accuracy of ±2 %. Its typical dropout voltage at current is 0.1@100mA|0.2@300mA V. This voltage regulation device&s;s single output can produce a current up to 0.3 A. Use this part at voltages between 1.9 V and 5.5 V. With a fixed output that has a voltage of 1 V, this is power management at its best. Maintain a constant voltage level with a load regulation of 0.006%/mATyp and line regulation of 0.05%/VTyp. Tape and reel packaging will encase the product during shipment, ensuring safe delivery and enabling quick mounting of components. The maximum dropout voltage is 0.4@300mA V. Its polarity is positive. This voltage regulation device has an operating temperature range of -40 °C to 125 °C.
安富利:
LDO Regulator Pos 1V 0.3A 5-Pin SOT-23 T/R
富昌:
LDK130 系列 0.3 A 1 V 极低噪声 LDO 稳压器 - SOT-23-5
Chip1Stop:
LDO Regulator Pos 1V 0.3A 5-Pin SOT-23 T/R
Verical:
LDO Regulator Pos 1V 0.3A 5-Pin SOT-23 T/R
输出接口数 1
输出电压 1 V
输出电流 300 mA
供电电流 60µA ~ 120µA
针脚数 5
静态电流 120 µA
跌落电压 200 mV
输入电压Max 5.5 V
输入电压Min 1.9 V
输出电压Min 1 V
输出电流Max 0.3 A
工作温度Max 125 ℃
工作温度Min -40 ℃
精度 ±2 %
输入电压 1.9V ~ 5.5V
安装方式 Surface Mount
引脚数 5

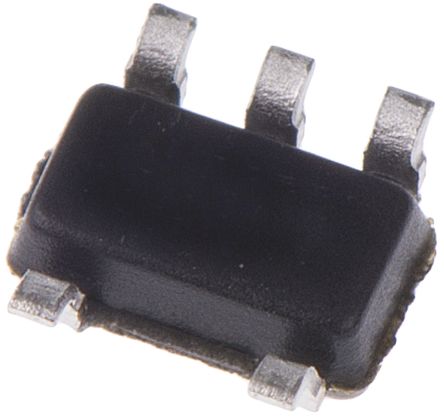

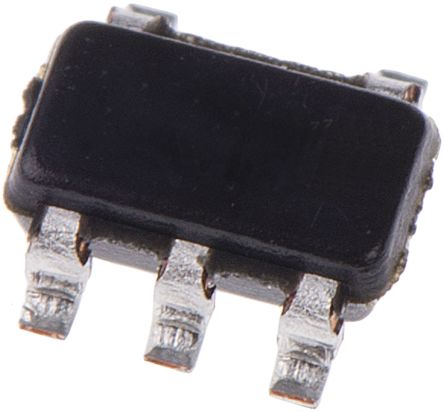

封装 SOT-23-5
长度 2.95 mm
宽度 1.6 mm
高度 1.3 mm
封装 SOT-23-5
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Cut Tape CT
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
