STMICROELECTRONICS LDK130PU08R 固定电压稳压器, LDO, 1.9V至5.5V, 200mV压差, 800mV输出, 300mA输出, DFN-6
LDO(低压降)线性稳压器,STMicroelectronics,250mA 至 500mA
### LDO(低压降)线性电压调节器,STMicroelectronics
低压降或 LDO 为线性电压稳压器。 我们有多种系列的线性稳压器。 LDO 稳压器可在输入 - 输出差分电压较小时运行。 LDO 电压稳压器可提供快速瞬态响应、宽输入电压范围、低静态电流、低噪声、高 PSRR。
立创商城:
正 Vin=5.5V Vout=0.8V 300mA 55dB@120Hz~10kHz
得捷:
IC REG LINEAR 0.8V 300MA 6DFN
欧时:
### LDO(低压降)线性稳压器,STMicroelectronics,250mA 至 500mA### LDO(低压降)线性电压调节器,STMicroelectronics低压降或 LDO 为线性电压稳压器。 我们有多种系列的线性稳压器。 LDO 稳压器可在输入 - 输出差分电压较小时运行。 LDO 电压稳压器可提供快速瞬态响应、宽输入电压范围、低静态电流、低噪声、高 PSRR。
e络盟:
固定电压稳压器, LDO, 1.9V至5.5V, 200mV压差, 800mV输出, 300mA输出, DFN-6
艾睿:
Control the voltage level of your circuit with this LDO LDK130PU08R linear regulator from STMicroelectronics. Its typical dropout voltage at current is 0.1@100mA|0.2@300mA V. It has an overall accuracy of ±2 %. This voltage regulation device&s;s single output can produce a current up to 0.3 A. Using the part will provide the power your application needs by requiring a voltage only of 1.9 V and not exceeding a voltage of 5.5 V. With a fixed output that has a voltage of 0.8 V, this is power management at its best. Users like the load regulation of 0.006%/mATyp and line regulation of 0.05%/VTyp. Tape and reel packaging will encase this product during shipment, in order to ensure safe delivery and enable quick mounting of components. This voltage regulation device has an operating temperature range of -40 °C to 125 °C. Its polarity is positive. The maximum dropout voltage is 0.4@300mA V.
安富利:
LDO Regulator Pos 0.8V 0.3A 6-Pin VFDFPN T/R
富昌:
LDK130 系列 0.3 A 0.8 V 极低噪声 LDO 稳压器 - DFN-6 1.2x1.3
Chip1Stop:
LDO Regulator Pos 0.8V 0.3A 6-Pin DFN T/R
Verical:
LDO Regulator Pos 0.8V 0.3A 6-Pin DFN T/R
输出接口数 1
输出电压 0.8 V
输出电流 300 mA
针脚数 6
静态电流 120 µA
跌落电压 200 mV
输入电压Max 5.5 V
输入电压Min 1.9 V
输出电流Max 300 mA
工作温度Max 125 ℃
工作温度Min -40 ℃
精度 ±2 %
输入电压 1.9V ~ 5.5V
安装方式 Surface Mount
引脚数 6

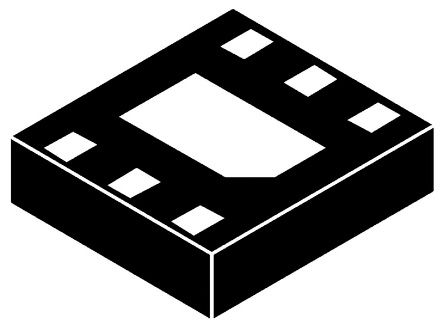

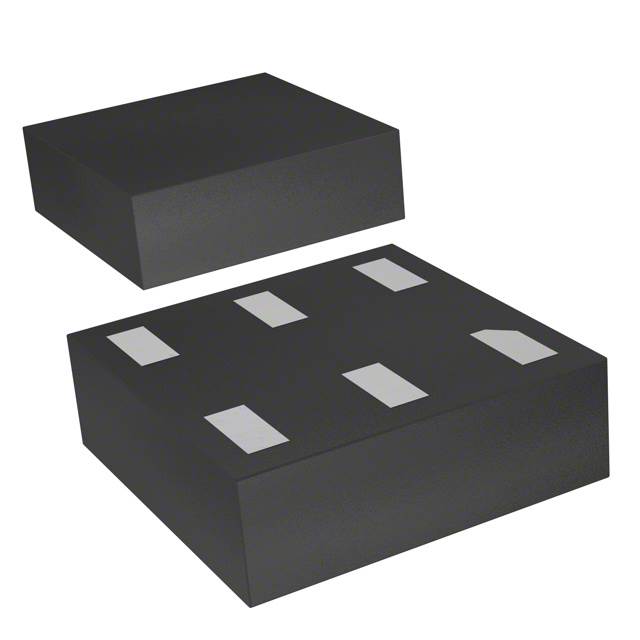

封装 DFN-6
长度 1.3 mm
宽度 1.2 mm
高度 0.45 mm
封装 DFN-6
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Cut Tape CT
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
