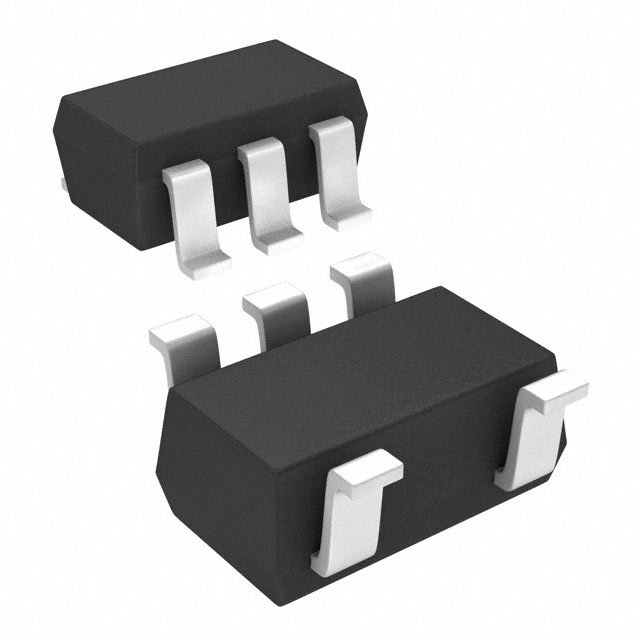

LDK120 系列 200 mA 1.2 V 固定输出 低噪声 LDO 稳压器 - SOT-23-5
Never worry about components seeing unstable voltages again by implementing this LDO linear regulator manufactured by STMicroelectronics. It has an overall accuracy of ±2 %. Its typical dropout voltage at current is 0.1@100mA|0.15@200mA V. This voltage regulation device"s single output can produce a current up to 0.2 A. By only needing an input voltage of 1.9 V with a maximum of 5.5 V, this is the best way to control the power in your circuit. With a fixed output that has a voltage of 1.2 V, this is power management at its best. A load regulation of 0.006%/mATyp and line regulation of 0.05%/VTyp is necessary for providing a constant voltage level at your output. Tape and reel packaging will encase this product during shipment, in order to ensure safe delivery and enable quick mounting of components. This voltage regulation device has a minimum operating temperature of -40 °C and a maximum of 125 °C. Its polarity is positive. The maximum dropout voltage is 0.3@200mA V.
输出接口数 1
输出电压 1.2 V
输出电流 200 mA
供电电流 60µA ~ 100µA
跌落电压 100 mV
输入电压Max 5.5 V
输入电压Min 1.9 V
输出电压Min 1.2 V
输出电流Max 0.2 A
工作温度Max 125 ℃
工作温度Min -40 ℃
精度 ±2 %
输入电压 5.5 V
安装方式 Surface Mount
引脚数 5
封装 SOT-23-5
封装 SOT-23-5
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
