STMICROELECTRONICS LDK120PU25R 固定电压稳压器, LDO, 1.9V至5.5V, 150mV压差, 2.5V输出, 200mA输出, DFN-6
LDO(低压降)线性电压调节器,STMicroelectronics,150mA 至 200mA
### LDO(低压降)线性电压调节器,STMicroelectronics
低压降或 LDO 为线性电压稳压器。 我们有多种系列的线性稳压器。 LDO 稳压器可在输入 - 输出差分电压较小时运行。 LDO 电压稳压器可提供快速瞬态响应、宽输入电压范围、低静态电流、低噪声、高 PSRR。
立创商城:
正 Vin=5.5V Vout=2.5V 200mA 55dB@120Hz~10kHz
得捷:
IC REG LINEAR 2.5V 200MA 6DFN
欧时:
### LDO(低压降)线性电压调节器,STMicroelectronics,150mA 至 200mA### LDO(低压降)线性电压调节器,STMicroelectronics低压降或 LDO 为线性电压稳压器。 我们有多种系列的线性稳压器。 LDO 稳压器可在输入 - 输出差分电压较小时运行。 LDO 电压稳压器可提供快速瞬态响应、宽输入电压范围、低静态电流、低噪声、高 PSRR。
e络盟:
固定电压稳压器, LDO, 1.9V至5.5V, 150mV压差, 2.5V输出, 200mA输出, DFN-6
艾睿:
Keep the energy stable for every system by using this LDO LDK120PU25R linear regulator by STMicroelectronics. Its typical dropout voltage at current is 0.1@100mA|0.15@200mA V. It has an overall accuracy of ±2 %. This voltage regulation device&s;s single output can produce a current up to 0.2 A. It only needs a voltage of at least 1.9 V while not exceeding 5.5 V to effectively power your circuit. With a fixed output that has a voltage of 2.5 V, this is power management at its best. Maintain a constant voltage level with a load regulation of 0.006%/mATyp and line regulation of 0.05%/VTyp. This component will be shipped in tape and reel packaging to allow for effective mounting and safe delivery. The maximum dropout voltage is 0.3@200mA V. This voltage regulation device has an operating temperature range of -40 °C to 125 °C. Its polarity is positive.
安富利:
LDO Regulator Pos 2.5V 0.2A 6-Pin DFN T/R
Chip1Stop:
LDO Regulator Pos 2.5V 0.2A 6-Pin DFN T/R
Verical:
LDO Regulator Pos 2.5V 0.2A 6-Pin DFN T/R
输出接口数 1
输出电压 2.5 V
输出电流 200 mA
供电电流 60µA ~ 100µA
针脚数 6
静态电流 100 µA
跌落电压 150 mV
输入电压Max 5.5 V
输入电压Min 1.9 V
输出电压Min 2.5 V
输出电流Max 200 mA
工作温度Max 125 ℃
工作温度Min -40 ℃
精度 ±2 %
输入电压 5.5 V
安装方式 Surface Mount
引脚数 6

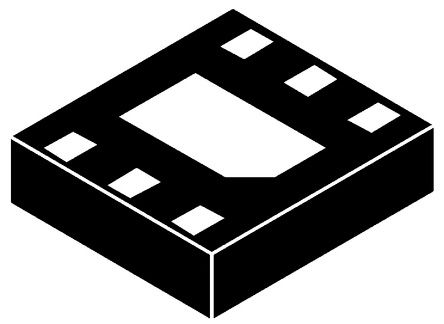

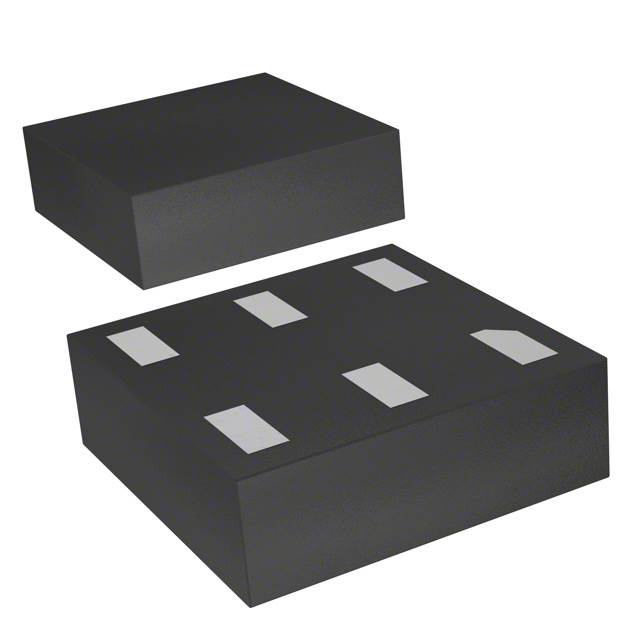

封装 DFN-6
长度 1.3 mm
宽度 1.2 mm
高度 0.45 mm
封装 DFN-6
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Cut Tape CT
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
