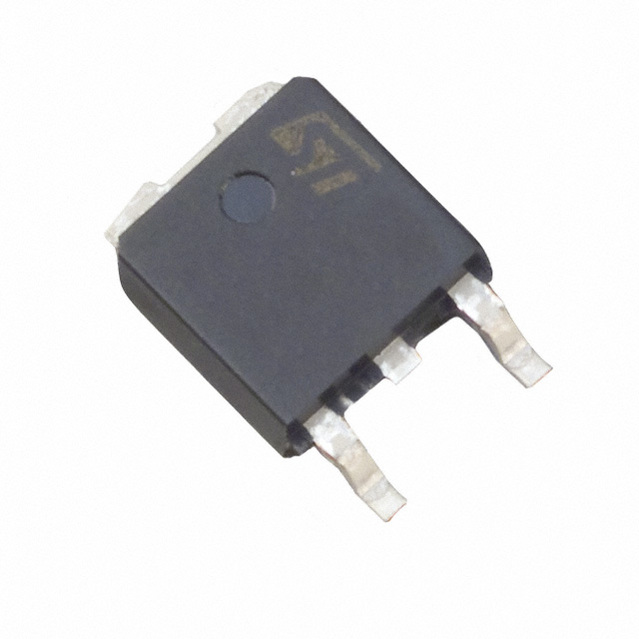

STMICROELECTRONICS L78M08CDT-TR 线性稳压器, 固定, 7808, 35V输入, 8V和0.5A输出, TO-252-3
PMIC - 稳压器 - 线性 输出 500mA DPAK
欧时:
STMicroelectronics, L78M08CDT-TR
得捷:
IC REG LINEAR 8V 500MA DPAK
立创商城:
正 Vin=35V Vout=8V 500mA 56dB@120Hz
艾睿:
Having trouble maintaining a steady voltage? This standard L78M08CDT-TR linear regulator from STMicroelectronics will give you control over the voltage levels of your circuit. Its typical dropout voltage at current is 2@350mA V. This voltage regulation device&s;s single output can produce a current up to 0.5 A. By working with a maximum input voltage of 35 V, this is the best way to control the power in your circuit. With a fixed output that has a voltage of 8 V, this is power management at its best. At a load regulation of 160mV and line regulation of 100mV a constant current can be produced at the output of your circuit. This product will be shipped in tape and reel packaging to allow for quick mounting and safe delivery. Its polarity is positive. This voltage regulation device has a minimum operating temperature of 0 °C and a maximum of 150 °C.
安富利:
Standard Regulator Pos 8V 0.5A 3-Pin2+Tab DPAK T/R
富昌:
L78M Series 500 mA 8 V Output Three Terminal Voltage LDO Regulator - TO-252
Chip1Stop:
Standard Regulator Pos 8V 0.5A 3-Pin2+Tab DPAK T/R
Verical:
Standard Regulator Pos 8V 0.5A 3-Pin2+Tab DPAK T/R
儒卓力:
**VREG POS 8V 0.5A 4% DPAK **
力源芯城:
三端正电压稳压器
DeviceMart:
IC REG LDO 8V .5A DPAK
Win Source:
Linear Voltage Regulator IC Positive Fixed 1 Output 8V 500mA D-Pak
输出接口数 1
输入电压DC 23.0V max
输出电压 8 V
输出电流 500 mA
供电电流 6 mA
针脚数 3
跌落电压 2V @350mA
输入电压Max 35 V
输出电压Min 8 V
输出电流Max 0.5 A
工作温度Max 150 ℃
工作温度Min 0 ℃
输入电压 35 V
安装方式 Surface Mount
引脚数 3
封装 TO-252-3
封装 TO-252-3
工作温度 0℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
L78M08CDT-TR ST Microelectronics 意法半导体 | 当前型号 | 当前型号 |
L78M05ABDT-TR 意法半导体 | 功能相似 | L78M08CDT-TR和L78M05ABDT-TR的区别 |
MC78M05ABDTRKG 安森美 | 功能相似 | L78M08CDT-TR和MC78M05ABDTRKG的区别 |
MC78M12CDTG 安森美 | 功能相似 | L78M08CDT-TR和MC78M12CDTG的区别 |
