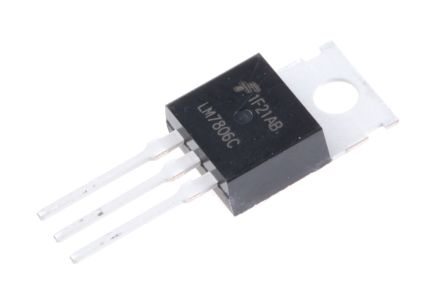

LM7806CT

FAIRCHILD SEMICONDUCTOR  LM7806CT  线性稳压器, 固定, 7806, 8V至21V输入, 6V和1A输出, TO-220AB-3

The is a 3-terminal 1A positive Linear Voltage Regulator, available with several fixed output voltages, making them useful in a wide range of applications. Each type employs internal current limiting, thermal shut down and safe operating area protection, making it essentially indestructible. If adequate heat sinking is provided, they can deliver over 1A output current. Although designed primarily as fixed voltage regulators, these devices can be used with external components to obtain adjustable voltages and currents.

.

Thermal overload protection

.

Short-circuit protection

.

Output transistor safe operating area protection
