LM431可调式精密齐纳并联稳压器 LM431 Adjustable Precision Zener Shunt Regulator
分流器 电压基准 IC 37 V ±2.2% SOT-23-3
得捷:
IC VREF SHUNT ADJ 2.2% SOT23-3
立创商城:
2.495V~37V 100mA
德州仪器TI:
2%, 1%, or 0.5% accuracy, adjustable precision Zener shunt regulator
艾睿:
Even in the event of large power supply variations, this LM431ACM3X/NOPB voltage reference power management device from Texas Instruments can produce and maintain a precise DC voltage. Supply your circuit with sufficient power by implementing this, which does not exceed 37 V. With an output that has a voltage of 2.495 to 37 V, this is power management at its best. It has an initial accuracy of 2%. This voltage reference circuit supports shunt topology. This product will be shipped in tape and reel packaging so that components can be mounted effectively. This voltage reference circuit has a minimum operating temperature of 0 °C and a maximum of 70 °C. It runs with a maximum temperature coefficient of 50ppm/°C.
安富利:
V-Ref Adjustable 2.495V to 37V 100mA 3-Pin SOT-23 T/R
Chip1Stop:
V-Ref Adjustable 2.495V to 37V 100mA 3-Pin SOT-23 T/R
Verical:
V-Ref Adjustable 2.495V to 37V 100mA 3-Pin SOT-23 T/R
Newark:
Voltage Reference, Precision, Shunt - Adjustable, LM431 Series, 2.495V to 36V, SOT-23-3
DeviceMart:
IC VREF SHUNT PREC ADJ SOT-23-3
Win Source:
IC VREF SHUNT ADJ SOT23-3
电源电压DC 36.0V max
容差 ±2.2 %
输出电压 2.495V ~ 37V
输出电流 100 mA
通道数 1
输入电压Max 37 V
输出电压Max 37 V
输出电压Min 2.495 V
输出电流Max 100 mA
工作温度Max 70 ℃
工作温度Min 0 ℃
精度 ±2 %
输入电压 37 V
安装方式 Surface Mount
引脚数 3

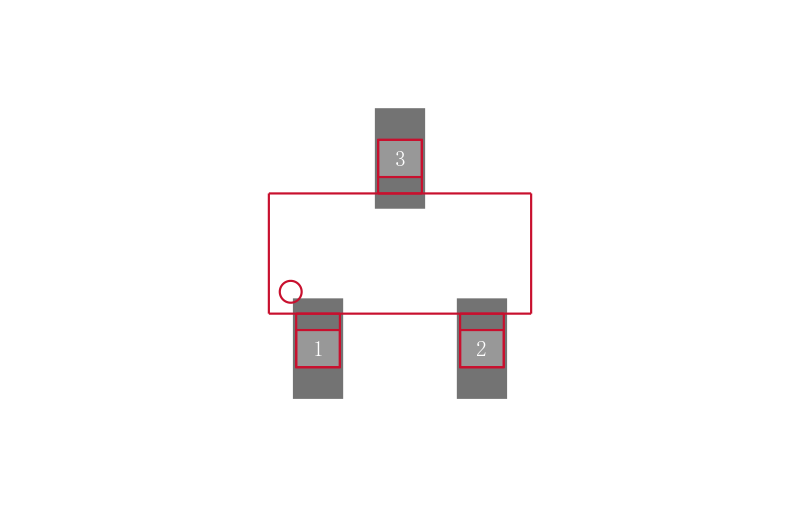

封装 SOT-23-3
封装 SOT-23-3
工作温度 0℃ ~ 70℃
温度系数 ±50 ppm/℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
LM431ACM3X/NOPB TI 德州仪器 | 当前型号 | 当前型号 |
LM431ACM3/NOPB 德州仪器 | 完全替代 | LM431ACM3X/NOPB和LM431ACM3/NOPB的区别 |
LM431ACM3X 德州仪器 | 完全替代 | LM431ACM3X/NOPB和LM431ACM3X的区别 |
LM431ACM3 德州仪器 | 完全替代 | LM431ACM3X/NOPB和LM431ACM3的区别 |
