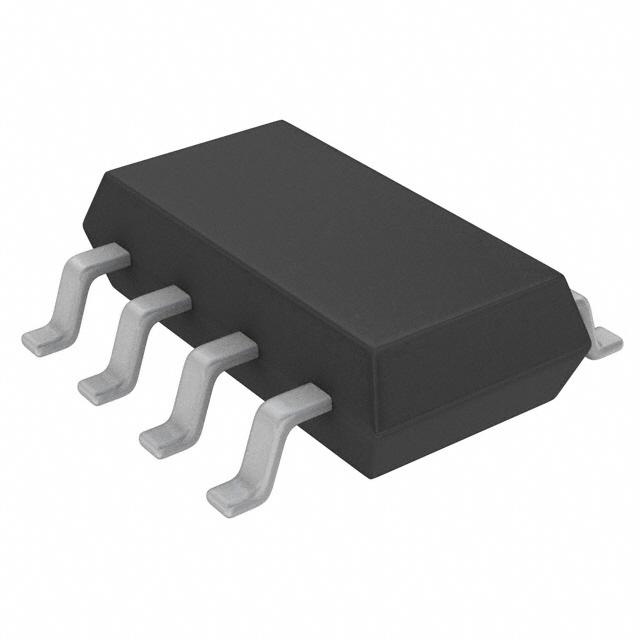

LINEAR TECHNOLOGY LTC2312CTS8-14#TRMPBF 模数转换器, 14 bit, 500 kSPS, 单, 2.7 V, 3.6 V, TSOT-23
offers this ADC that will easily convert your continuous analog signals into digital data without altering essential content. Its maximum power dissipation is 21.5 mW. This device is based on SAR architecture. This device"s digital interface is serial 3-wire, spi. It has a single-ended input signal. This ADC has a resolution of 14bit. This ADC has an input voltage of 2.048V/4.096 V. This ADC has a temperature range of 0 °C to 70 °C.
电源电压DC 2.70V min
供电电流 3.40 mA
针脚数 8
位数 14
耗散功率 17 mW
采样率 500 ksps
模数转换数ADC 1
输入数 1
工作温度Max 70 ℃
工作温度Min 0 ℃
耗散功率Max 21.5 mW
输入通道数 1
电源电压Max 3.6 V
电源电压Min 2.7 V
输入电压 2.048V, 4.096V
引脚数 8
封装 TSOT-23-8
封装 TSOT-23-8
工作温度 0℃ ~ 70℃
产品生命周期 Unknown
包装方式 Cut Tape CT
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
LTC2312CTS8-14#TRMPBF Linear Technology 凌力尔特 | 当前型号 | 当前型号 |
LTC2312CTS8-14#TRPBF 凌力尔特 | 完全替代 | LTC2312CTS8-14#TRMPBF和LTC2312CTS8-14#TRPBF的区别 |
LTC2312ITS8-14#TRPBF 凌力尔特 | 完全替代 | LTC2312CTS8-14#TRMPBF和LTC2312ITS8-14#TRPBF的区别 |
LTC2313ITS8-14#TRMPBF 凌力尔特 | 类似代替 | LTC2312CTS8-14#TRMPBF和LTC2313ITS8-14#TRMPBF的区别 |
