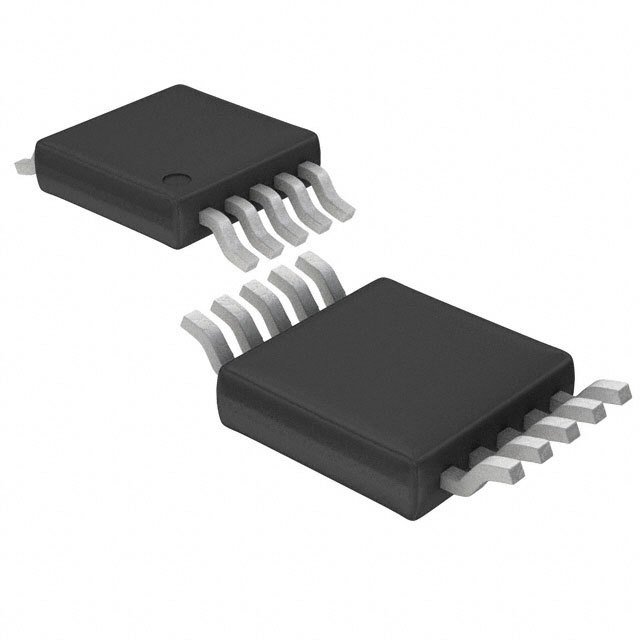

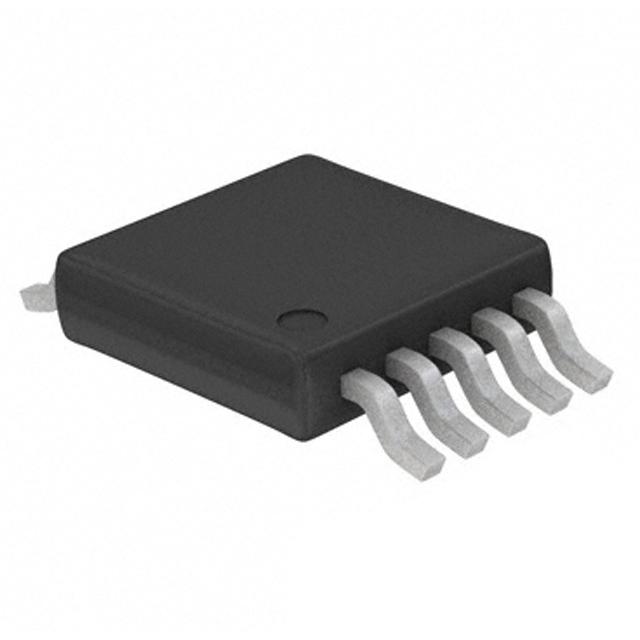

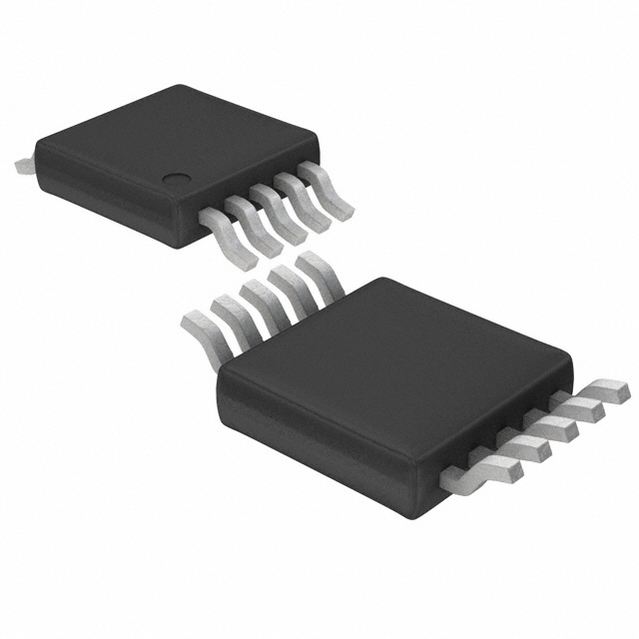

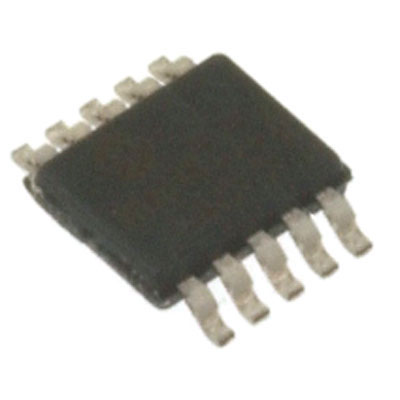

LTC1865CMS#PBF

LINEAR TECHNOLOGY  LTC1865CMS#PBF  模数转换器, 双路, 16 bit, 250 kSPS, 单, 4.75 V, 5.25 V, MSOP

The is a µPower Analog-to-digital Converter ADC that operates on a single 5V supply. The supply current drops at lower speeds because the LTC1864 automatically power down between conversions. This 16-bit switched capacitor successive approximation ADC includes sample-and-holds. The LTC1864 has a differential analog input with an adjustable reference pin. The LTC1865 offers a software-selectable 2-channel MUX and an adjustable reference pin on the MSOP version. The 3-wire serial I/O extremely high sample rate-to-power ratio makes this ADC ideal choice for compact, low power, high speed systems. This ADC can be used in ratiometric applications or with external references. The high impedance analog inputs and the ability to operate with reduced spans down to 1V full scale, allow direct connection to signal sources in many applications eliminating the need for external gain stages.

.

True differential inputs

.

SPI/MICROWIRE compatible serial I/O

.

Pin compatible with 12-bit LTC1860/LTC1861
