LDO(低压降)线性电压稳压器,Fairchild Semiconductor### LDO(低压降)线性电压调节器 - Fairchild Semiconductor低压降或 LDO 为线性电压稳压器。 我们有多种系列的线性稳压器。 LDO 稳压器可在输入 - 输出差分电压较小时运行。 LDO 电压稳压器可提供快速瞬态响应、宽输入电压范围、低静态电流、低噪声、高 PSRR。
The is a 5V fixed output adjustable micro-power Voltage Regulator suitable for battery-powered systems. This regulator has various functions such as alarm that warns of a low output voltage often due to falling batteries on the input, the external shutdown enables the regulator to be switched on and off, current and temperature limiting.
电源电压DC 30.0V max
输出接口数 1
输入电压DC 30.0V max
输出电压 1.26V ~ 28V
输出电流 100 mA
针脚数 8
跌落电压 600 mV
输入电压Max 30 V
输出电流Max 0.1 A
工作温度Max 125 ℃
工作温度Min -40 ℃
输入电压 ≤30 V
安装方式 Surface Mount
引脚数 8

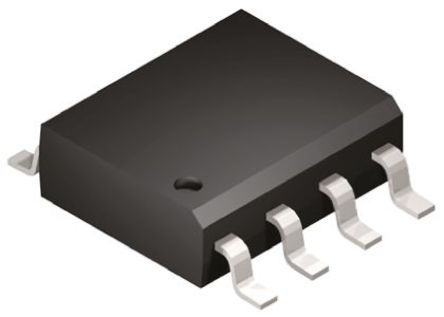

封装 SOIC-8
长度 5.13 mm
宽度 3.95 mm
高度 1.55 mm
封装 SOIC-8
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Each
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
LP2951CM Fairchild 飞兆/仙童 | 当前型号 | 当前型号 |
LP2951CMX 飞兆/仙童 | 完全替代 | LP2951CM和LP2951CMX的区别 |
LP2951ACMX/NOPB 德州仪器 | 功能相似 | LP2951CM和LP2951ACMX/NOPB的区别 |
LP2951CMX/NOPB 德州仪器 | 功能相似 | LP2951CM和LP2951CMX/NOPB的区别 |
