LDO 电压稳压器,ON Semiconductor### LDO(低压降)线性电压调节器,ON Semiconductor低压降或 LDO 为线性电压稳压器。 我们有多种系列的线性稳压器。 LDO 稳压器可在输入 - 输出差分电压较小时运行。 LDO 电压稳压器可提供快速瞬态响应、宽输入电压范围、低静态电流、低噪声、高 PSRR。
低压降 LDO 线性电压调节器,可调节,
### LDO(低压降)线性稳压器,ON Semiconductor
低压降或 LDO 为线性稳压器。 我们有多种系列的线性稳压器。 LDO 稳压器可在输入 - 输出差分电压较小时运行。 LDO 稳压器可提供快速瞬态响应、宽输入电压范围、低静态电流、低噪声、高 PSRR。
得捷:
IC REG LIN POS ADJ 100MA 8SOIC
立创商城:
LM2931ACDR2G
欧时:
### 可调线性 LDO 电压稳压器,ON Semiconductor### LDO(低压降)线性稳压器,ON Semiconductor低压降或 LDO 为线性稳压器。 我们有多种系列的线性稳压器。 LDO 稳压器可在输入 - 输出差分电压较小时运行。 LDO 稳压器可提供快速瞬态响应、宽输入电压范围、低静态电流、低噪声、高 PSRR。
e络盟:
可调LDO稳压器, 2.5V至40V, 160mV压降, 2.7V至29.5V/100mA输出, SOIC-8
艾睿:
Control the voltage level of your circuit with this LDO LM2931ACDR2G linear regulator from ON Semiconductor. Its typical dropout voltage at current is 0.015@10mA|0.16@100mA V. It has an overall accuracy of ±2 %. This voltage regulation device&s;s single output can produce a current up to 0.1Typ A. Use this part at voltages lower than 40 V. With an adjustable output, this is power management at its best. Your circuit has the capability to produce a constant current at its output by using a load regulation of 1%/V and line regulation of 1.5mV/V. This product will be shipped in tape and reel packaging so that components can be mounted effectively. This voltage regulation device has an operating temperature range of -40 °C to 125 °C. The maximum dropout voltage is 0.2@10mA|0.6@100mA V. Its polarity is positive.
Allied Electronics:
LDO Regulator Adjustable 2% 100mA SOIC8
安富利:
LDO Regulator Pos 0.1A 8-Pin SOIC N T/R
Chip1Stop:
LDO Regulator Pos 0.1A 8-Pin SOIC N T/R
Verical:
LDO Regulator Pos 0.1A 8-Pin SOIC N T/R
力源芯城:
100mA可调输出带有60V负载保护低压差稳压器
DeviceMart:
IC REG LDO ADJ .1A 8SOIC
Win Source:
Linear Voltage Regulator IC Positive Adjustable 1 Output 2.7 V ~ 29.5 V 100mA 8-SOIC
无卤素状态 Halogen Free
输出接口数 1
输入电压DC 40.0V max
输出电压 2.7V ~ 29.5V
输出电流 100 mA
针脚数 8
极性 P-Channel
静态电流 30 mA
跌落电压 0.16V @100mA
输入电压Max 40 V
输入电压Min 2.5 V
输出电压Max 29.5 V
输出电压Min 2.7 V
输出电流Max 100 mA
工作温度Max 125 ℃
工作温度Min -40 ℃
精度 ±2 %
输入电压 ≤40 V
安装方式 Surface Mount
引脚数 8

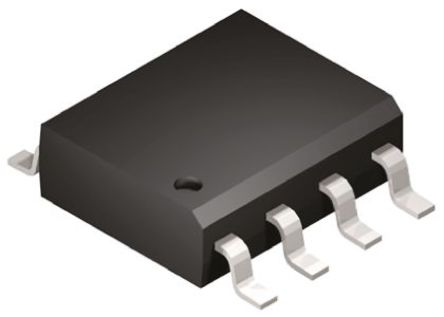

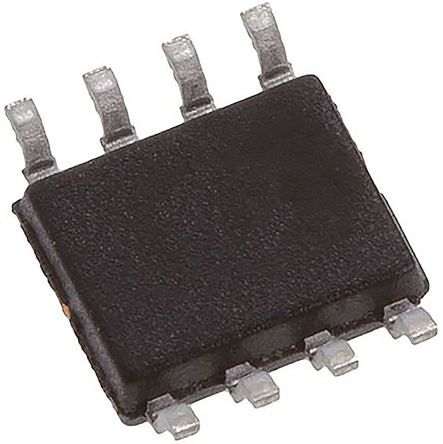

封装 SOIC-8
长度 5 mm
宽度 4 mm
高度 1.5 mm
封装 SOIC-8
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 Battery Powered Consumer Products, Automotive, Handheld Instruments
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
LM2931ACDR2G ON Semiconductor 安森美 | 当前型号 | 当前型号 |
LM2931CDR2G 安森美 | 完全替代 | LM2931ACDR2G和LM2931CDR2G的区别 |
LM2931ACDG 安森美 | 完全替代 | LM2931ACDR2G和LM2931ACDG的区别 |
NCV2931CDR2G 安森美 | 完全替代 | LM2931ACDR2G和NCV2931CDR2G的区别 |
