LD3985M27R

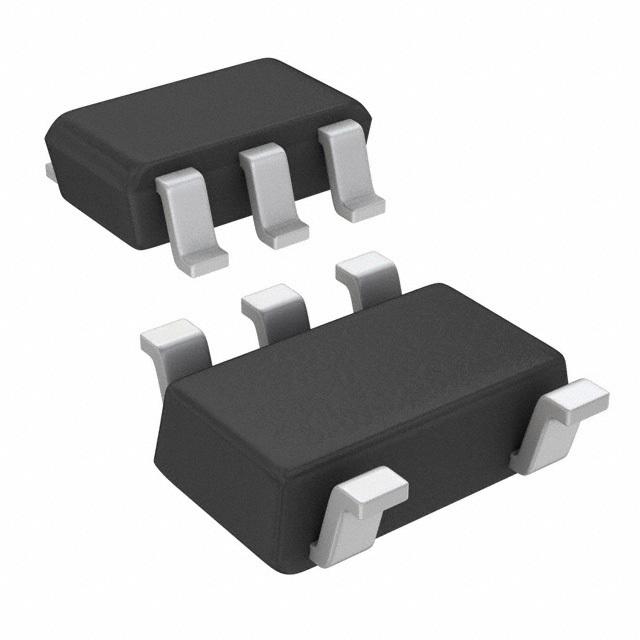

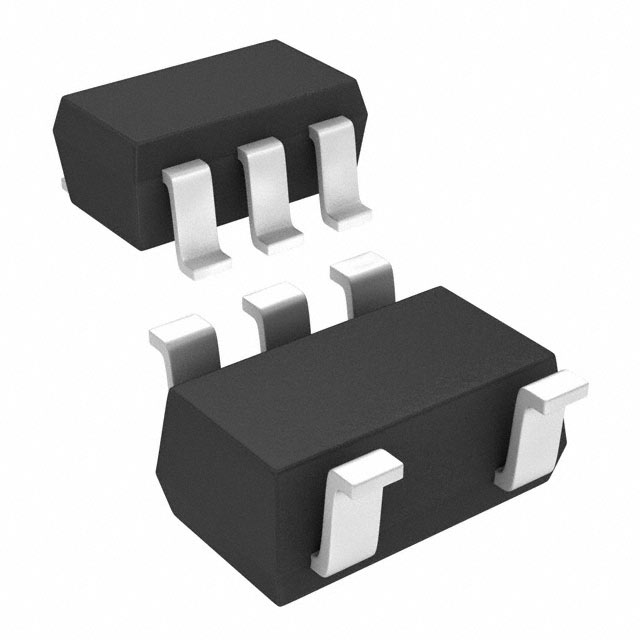

LD3985 系列 150 mA 2.7 V 固定 低噪声 LDO BiCMOS 稳压器-SOT-23-5

Description

The LD3985xx provides up to 150 mA, from 2.5 V to 6 V input voltage. The ultra low drop-voltage, low quiescent current and low noise make it suitable for low power applications and in battery powered systems. Regulator ground current increases only slightly in dropout, further prolonging the battery life. Power supply rejection is better than 60 dB at low frequencies and starts to roll off at 10 kHz. High power supply rejection is maintained down to low input voltage levels common to battery operated circuits. Shutdown logic control function is available, this means that when the device is used as local regulator, it is possible to put a part of the board in standby, decreasing the total power consumption. The LD3985xx is designed to work with low ESR ceramic capacitors. Typical applications are in mobile phone and similar battery powered wireless systems.

Features

■ Input voltage from 2.5 V to 6 V

■ Stable with low ESR ceramic capacitors

■ Ultra low dropout voltage 60 mV typ. at 150 mA load, 0.4 mV typ. at 1 mA load

■ Very low quiescent current 85 µA typ. at no load, 170 µA typ. at 150 mA load; max 1.5 µA in OFF mode

■ Guaranteed output current up to 150 mA

■ Wide range of output voltage: 1.22 V; 1.8 V; 2.5 V; 2.6 V; 2.7 V; 2.8 V; 2.9 V; 3 V; 3.3 V; 4.7 V

■ Fast turn-on time: typ. 200 µs [CO = 1 µF, CBYP = 10 nF and IO = 1 mA]

■ Logic-controlled electronic shutdown

■ Internal current and thermal limit

■ Output low noise voltage 30 µVRMS over 10 Hz to 100 kHz

■ SVR of 60 dB at 1 kHz, 50 dB at 10 kHz

■ Temperature range: - 40 °C to 125 °C
