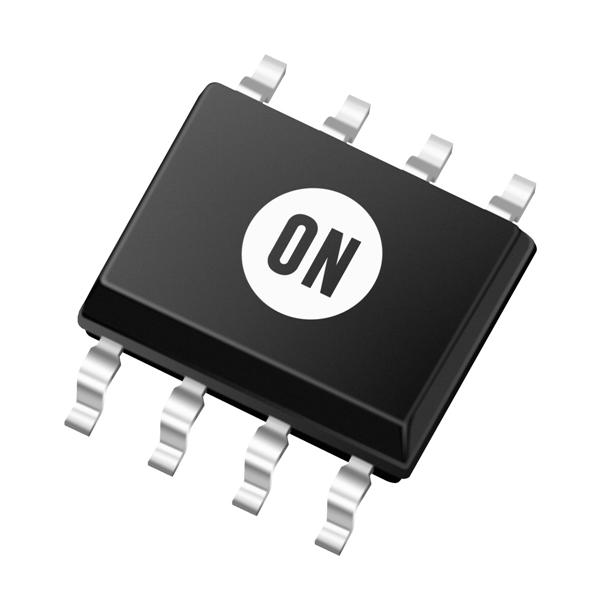

LP2951CD-3.0R2G

100mA,3V输出,具有出错信号输出

PMIC - 稳压器 - 线性 正 固定 输出 100mA 8-SOIC

得捷:
IC REG LINEAR 3V 100MA 8SOIC

艾睿:
Never worry about components not turning off and on due to lack of voltage with this LDO LP2951CD-3.0R2G linear regulator from ON Semiconductor. Its typical dropout voltage at current is 0.03@100uA|0.35@100mA V. It has an overall accuracy of ±1 %. This voltage regulation device&s;s single output can produce a current up to 0.1Typ A. With a voltage no larger than 30 V, this will supply sufficient power to your circuit. With a fixed output that has a voltage of 3 V, this is power management at its best. At a load regulation of 0.2% and line regulation of 0.2% a constant current can be produced at the output of your circuit. Tape and reel packaging will encase this product during shipment, in order to ensure safe delivery and enable quick mounting of components. Its polarity is positive. This voltage regulation device has an operating temperature range of -40 °C to 125 °C. The maximum dropout voltage is 0.08@100uA|0.45@100mA V.

安富利:
LDO Regulator Pos 3V 0.1A 8-Pin SOIC N T/R

Chip1Stop:
LDO Regulator Pos 3V 0.1A 8-Pin SOIC N T/R

力源芯城:
低功耗100mA,3V输出,具有出错信号输出
