TEXAS INSTRUMENTS LP3985IM5-2.7/NOPB 固定电压稳压器, LDO, 2.5V至6V, 60mV压差, 2.7V输出, 150mA输出, SOT-23-5
PMIC - 稳压器 - 线性 正 固定 输出 150mA SOT-23-5
立创商城:
LP3985IM5-2.7/NOPB
德州仪器TI:
150-mA, low-dropout voltage regulator with bypass & enable
得捷:
IC REG LINEAR 2.7V 150MA SOT23-5
贸泽:
低压差稳压器 MicroPwr 150mA LDO CMOS Vtg Reg
e络盟:
TEXAS INSTRUMENTS LP3985IM5-2.7/NOPB 固定电压稳压器, LDO, 2.5V至6V, 60mV压差, 2.7V输出, 150mA输出, SOT-23-5
艾睿:
Maintain a steady voltage level with this LDO LP3985IM5-2.7/NOPB linear regulator from Texas Instruments. Its typical dropout voltage at current is 0.0004@1mA|0.02@50mA|0.045@100mA|0.06@150mA V. It has an overall accuracy of ±2 %. This device has a maximum power dissipation of 250 mW. This voltage regulation device&s;s single output can produce a current up to 0.15 A. By only needing an input voltage of 2.5 V with a maximum of 6 V, this is the best way to control the power in your circuit. With a fixed output that has a voltage of 2.7 V, this is power management at its best. Its maximum power dissipation is 250 mW. This product will be shipped in tape and reel packaging so that components can be mounted effectively. This voltage regulation device has an operating temperature range of -40 °C to 125 °C. The maximum dropout voltage is 0.002@1mA|0.035@50mA|0.07@100mA|0.1@150mA V. Its polarity is positive.
安富利:
LDO Regulator Pos 2.7V 0.15A 5-Pin SOT-23 T/R
Chip1Stop:
LDO Regulator Pos 2.7V 0.15A 5-Pin SOT-23 T/R
Verical:
LDO Regulator Pos 2.7V 0.15A 5-Pin SOT-23 T/R
Newark:
# TEXAS INSTRUMENTS LP3985IM5-2.7/NOPB Fixed LDO Voltage Regulator, 2.5V to 6V, 60mV Dropout, 2.7Vout, 150mAout, SOT-23-5
Win Source:
Linear Voltage Regulator IC Positive Fixed 1 Output 2.7V 150mA SOT-23-5
容差 ±3 %
输出接口数 1
输出电压 2.7 V
输出电流 150 mA
供电电流 150µA ~ 250µA
针脚数 5
耗散功率 250 mW
静态电流 0.085 mA
输出电容类型 Ceramic
跌落电压 60 mV
调节输出数 1
输入电压Max 6 V
输入电压Min 2.5 V
输出电压Min 2.7 V
输出电流Max 0.15 A
工作温度Max 125 ℃
工作温度Min -40 ℃
耗散功率Max 250 mW
精度 ±2 %
输入电压 ≤6 V
安装方式 Surface Mount
引脚数 5

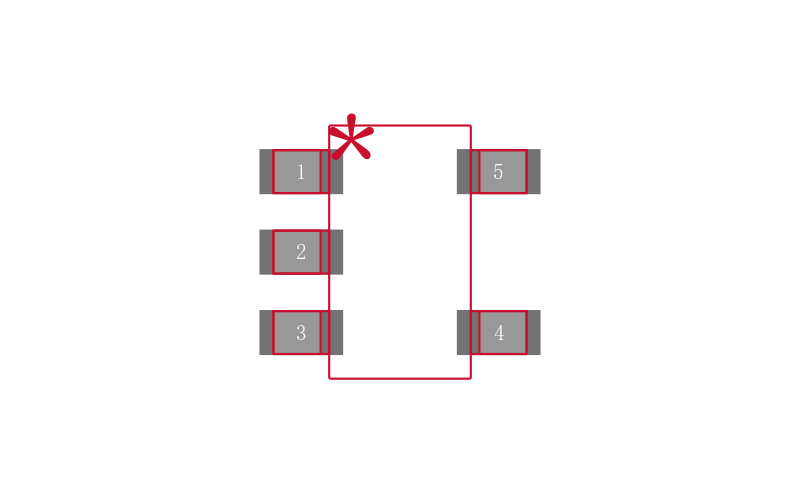

封装 SOT-23-5
封装 SOT-23-5
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/06/15
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
LP3985IM5-2.7/NOPB TI 德州仪器 | 当前型号 | 当前型号 |
LP3985IM5-2.7 德州仪器 | 类似代替 | LP3985IM5-2.7/NOPB和LP3985IM5-2.7的区别 |
