100mA,具有出错信号输出
PMIC - 稳压器 - 线性 正 固定 1 输出 100mA 8-SOIC
立创商城:
LP2951ACD-3.0R2G
得捷:
IC REG LINEAR 3V 100MA 8SOIC
艾睿:
Use the LDO LP2951ACD-3.0R2G linear regulator from ON Semiconductor to maintain a constant output voltage. It has an overall accuracy of ±0.5 %. Its typical dropout voltage at current is 0.03@100uA|0.35@100mA V. This voltage regulation device&s;s single output can produce a current up to 0.1Typ A. This will operate at a maximum voltage of 30 V, making it easy to control the power in your circuit. With a fixed output that has a voltage of 3 V, this is power management at its best. Using a load regulation of 0.1% and line regulation of 0.1% is needed for a programmable DC power supply. This component will be shipped in tape and reel packaging for effective mounting and safe delivery. The maximum dropout voltage is 0.08@100uA|0.45@100mA V. This voltage regulation device has an operating temperature range of -40 °C to 125 °C. Its polarity is positive.
安富利:
LDO Regulator Pos 3V 0.1A 8-Pin SOIC N T/R
Verical:
LDO Regulator Pos 3V 0.1A 8-Pin SOIC N T/R
力源芯城:
低功耗100mA,具有出错信号输出
Win Source:
Linear Voltage Regulator IC Positive Fixed 1 Output 3V 100mA 8-SOIC
无卤素状态 Halogen Free
输出接口数 1
输出电压 3 V
输出电流 100 mA
针脚数 8
极性 P-Channel
跌落电压 0.35V @100mA
输入电压Max 30 V
输入电压Min 4 V
工作温度Max 125 ℃
工作温度Min -40 ℃
精度 ±0.5 %
输入电压 ≤30 V
安装方式 Surface Mount
引脚数 8

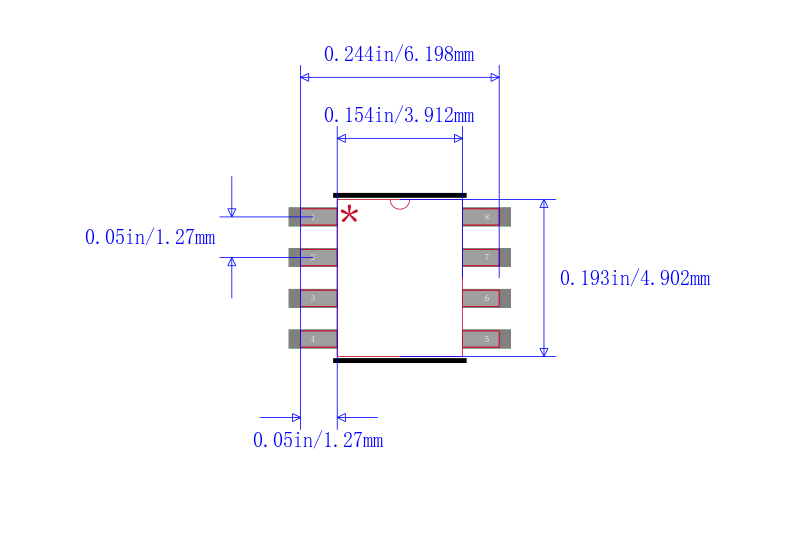

封装 SOIC-8
宽度 4 mm
封装 SOIC-8
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
LP2951ACD-3.0R2G ON Semiconductor 安森美 | 当前型号 | 当前型号 |
LP2951ACD-3.0 安森美 | 完全替代 | LP2951ACD-3.0R2G和LP2951ACD-3.0的区别 |
LP2951CD-3.0 安森美 | 完全替代 | LP2951ACD-3.0R2G和LP2951CD-3.0的区别 |
LP2951ACD-3.0R2 安森美 | 完全替代 | LP2951ACD-3.0R2G和LP2951ACD-3.0R2的区别 |
