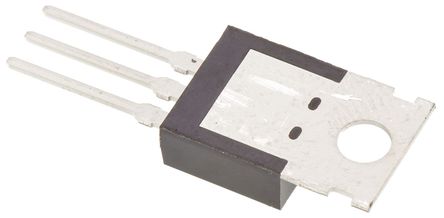

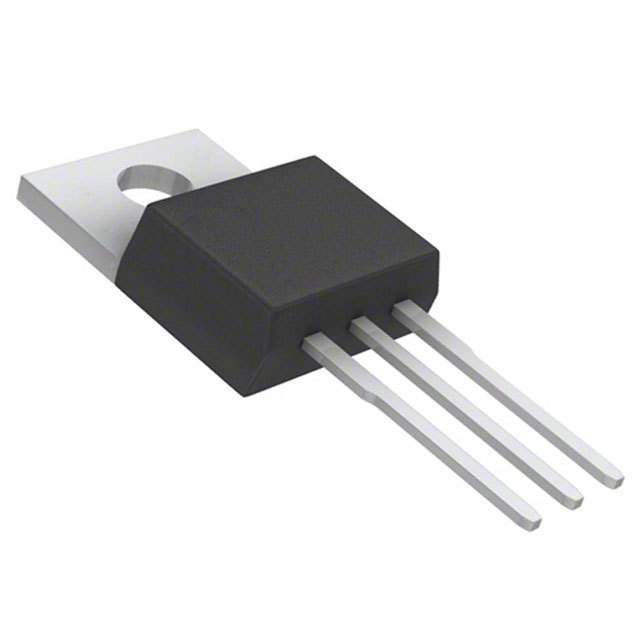

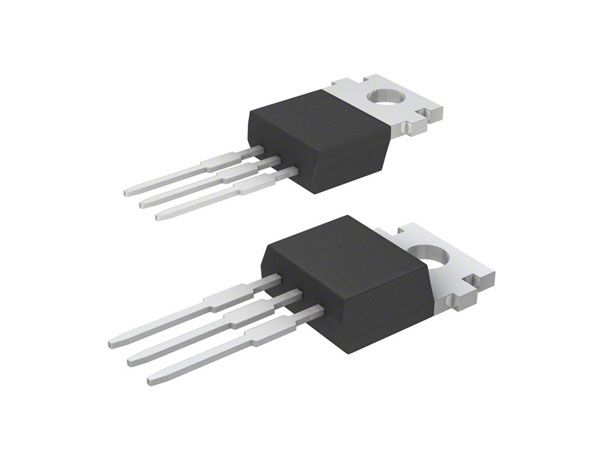

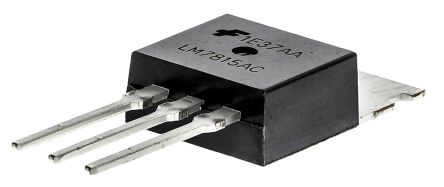

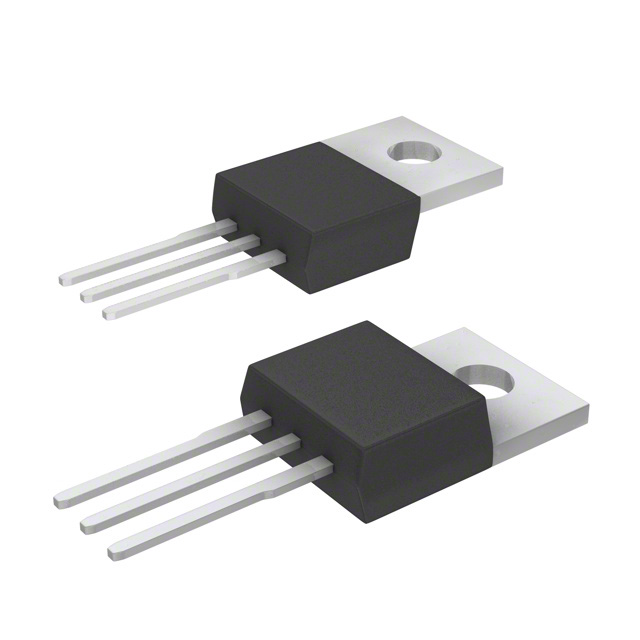

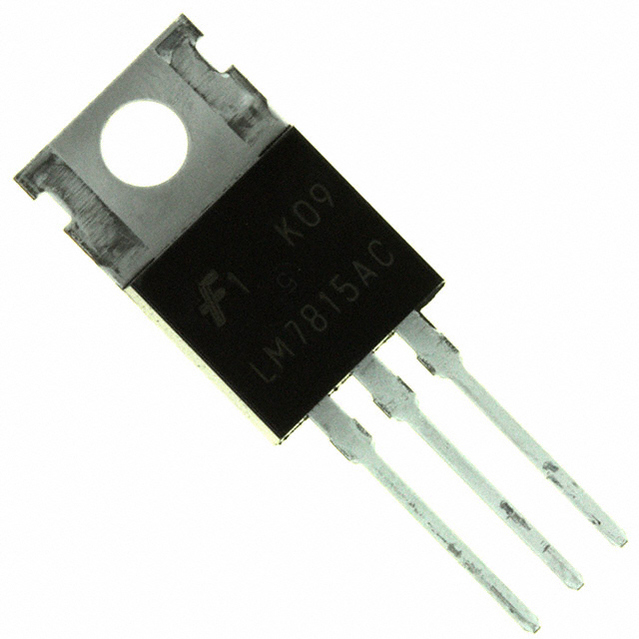

LM78 系列线性电压调节器,Fairchild Semiconductor**Fairchild**** Semiconductor** 的 **LM78x**x 系列三端子线性电压调节器是固定电压调节器,可用于各种应用。 正固定电压调节器无需外部元件,它们包含了内部热过载保护和电流限制和安全区域补偿。 固定输出电压范围为 5 V 到最大 24 V 输出电流:1A 内部电流限制 热关闭 安全工作区保护 TO220 封装 ### 注尽管主要设计用作固定电压调节器,但这些设备可与外部组件一起使用,以获得可调节的电压和电流。### 线性电压稳压器,Fairchild Semiconductor
The is a 3-terminal Positive Regulator with several fixed output voltages, making it useful in a wide range of applications. This type employs internal current limiting, thermal shut down and safe operating area protection, making it essentially indestructible. If adequate heat sinking is provided, it can deliver over 1A output current. Although designed primarily as fixed voltage regulator, this device can be used with external components to obtain adjustable voltages and currents.
输出接口数 1
输出电压 15 V
输出电流 1 A
针脚数 3
静态电流 6 mA
跌落电压 2V @1A
输入电压Max 30 V
输入电压Min 17.5 V
输出电流Max 1 A
工作温度Max 125 ℃
工作温度Min 0 ℃
精度 ±2 %
输入电压 ≤35 V
安装方式 Through Hole
引脚数 3
封装 TO-220-3
长度 10.67 mm
宽度 4.83 mm
高度 16.51 mm
封装 TO-220-3
工作温度 0℃ ~ 125℃
产品生命周期 Active
包装方式 Each
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
LM7815ACT Fairchild 飞兆/仙童 | 当前型号 | 当前型号 |
LM7812CT 飞兆/仙童 | 类似代替 | LM7815ACT和LM7812CT的区别 |
KA7812ETU 飞兆/仙童 | 类似代替 | LM7815ACT和KA7812ETU的区别 |
KA7815ETU 飞兆/仙童 | 类似代替 | LM7815ACT和KA7815ETU的区别 |
