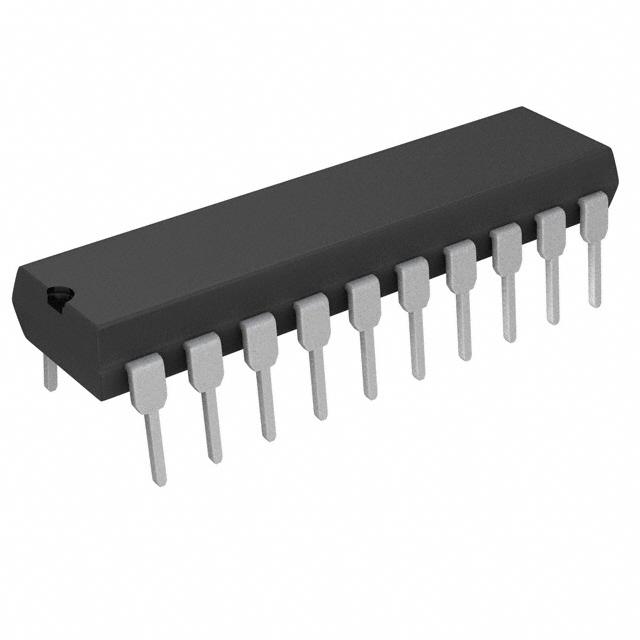

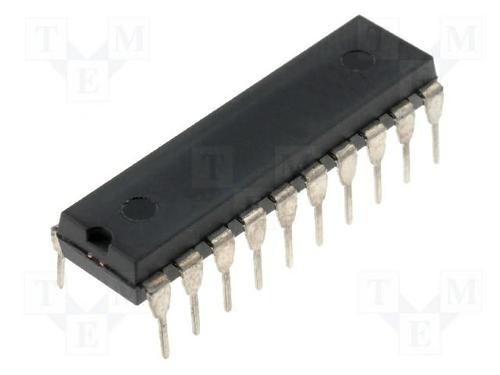

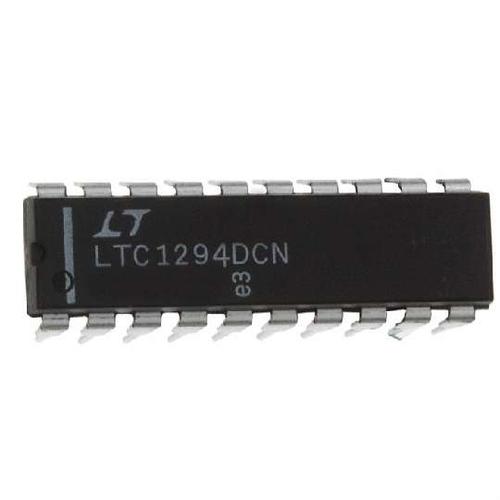

LTC1294DCN#PBF

LINEAR TECHNOLOGY  LTC1294DCN#PBF  模数转换器, 12 bit, 46.5 kSPS, 单, 4.75 V, 5.25 V, DIP

The is a single chip Data Acquisition System which contain a serial I/O successive approximation A/D converter. It uses LTCMOSTM switched capacitor technology to perform 12-bit unipolar plus sign bipolar A/D conversions. The input multiplexer can be configured for either single-ended or differential inputs. An on-chip sample and hold is included for all single-ended input channels. The LTC1296 includes a system shutdown output pin which can be used to power down external circuitry such as signal conditioning circuitry prior to the input mux. The serial I/O is designed to communicate without external hardware to most MPU serial ports and all MPU parallel I/O ports allowing up to eight channels of data to be transmitted over as few as three wires.

.

Power shutdown

.

Built-in sample-and-hold

.

Direct 4-wire interface to most MPU serial ports and all MPU parallel ports

.

System shutdown output
