LINEAR TECHNOLOGY LTC2250IUH#PBF 模数转换器, 10 bit, 105 MSPS, 单, 2.85 V, 3.5 V, QFN
Get optimal performance without sacrificing speed or accuracy with this ADC from ! It has a single-ended and differential input signal. This device is based on Pipelined architecture. Its maximum power dissipation is 378 mW. This device"s digital interface is parallel. This ADC has a resolution of 10bit. This ADC has an input voltage of ±0.5V/±1 V. This ADC has a minimum operating temperature of -40 °C and a maximum of 85 °C.
电源电压DC 2.85V min
供电电流 107 mA
电路数 1
针脚数 32
位数 10
耗散功率 320 mW
采样率 105 Msps
模数转换数ADC 1
输入数 1
工作温度Max 85 ℃
工作温度Min -40 ℃
耗散功率Max 378 mW
输入通道数 1
电源电压Max 3.5 V
电源电压Min 2.85 V
安装方式 Surface Mount
引脚数 32

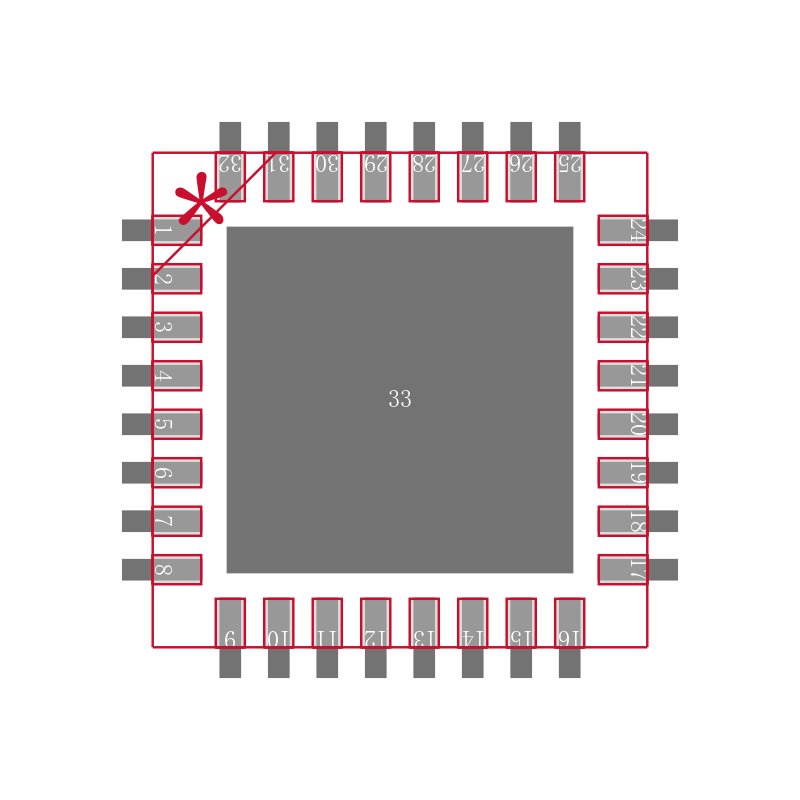

封装 QFN-32
封装 QFN-32
工作温度 -40℃ ~ 85℃
产品生命周期 Unknown
包装方式 Each
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
LTC2250IUH#PBF Linear Technology 凌力尔特 | 当前型号 | 当前型号 |
LTC2252IUH#PBF 凌力尔特 | 类似代替 | LTC2250IUH#PBF和LTC2252IUH#PBF的区别 |
LTC2252CUH#PBF 凌力尔特 | 类似代替 | LTC2250IUH#PBF和LTC2252CUH#PBF的区别 |
LTC2250CUH#PBF 凌力尔特 | 类似代替 | LTC2250IUH#PBF和LTC2250CUH#PBF的区别 |
