TEXAS INSTRUMENTS LM809M3-4.38/NOPB 微控制器复位电路, 低电平有效复位, 1.2V-5.5V输入, SOT-23-3
The is a 3-pin Microprocessor Supervisory Circuit with active-low RESET output. The supervisory circuit can be used to monitor the power supplies in microprocessor and digital systems. It provides a reset to the microprocessor during power-up, power-down and brownout conditions. The function of the LM809 is to monitor the VCC supply voltage and assert a reset signal whenever this voltage declines below the factory-programmed reset threshold. The reset signal remains asserted for 240ms after VCC rises above the threshold.
- .
- Power supply transient immunity
- .
- Fully specified over-temperature
- .
- Ensured RESET output valid for VCC >= 1V
- .
- Superior upgrade to MAX809 and MAX810
- .
- 140ms Minimum power-ON reset pulse width
- .
- 15µA Typical low supply current
- .
- Green product and no Sb/Br
电源电压DC 1.20V min
供电电流 0.018 mA
针脚数 3
耗散功率 320 mW
静态电流 15.0 µA
阈值电压 4.38 V
复位电压Min 4.31 V
复位电压Max 4.45 V
工作温度Max 105 ℃
工作温度Min -40 ℃
耗散功率Max 320 mW
电源电压Max 5.5 V
电源电压Min 1.2 V
安装方式 Surface Mount
引脚数 3

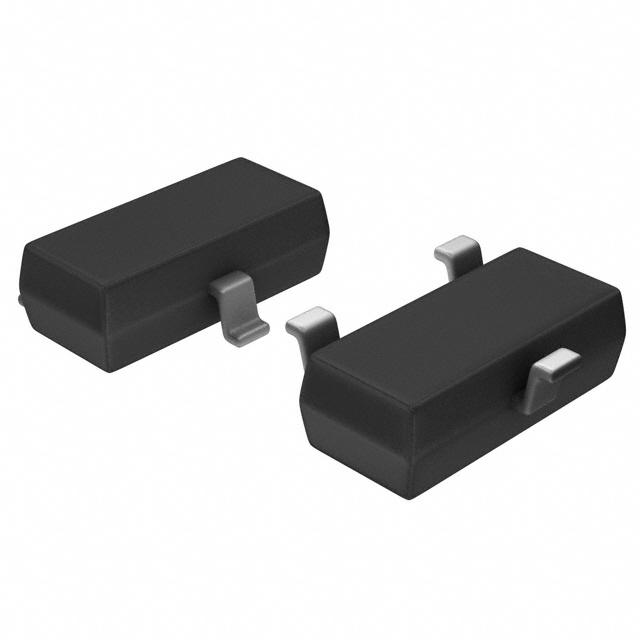

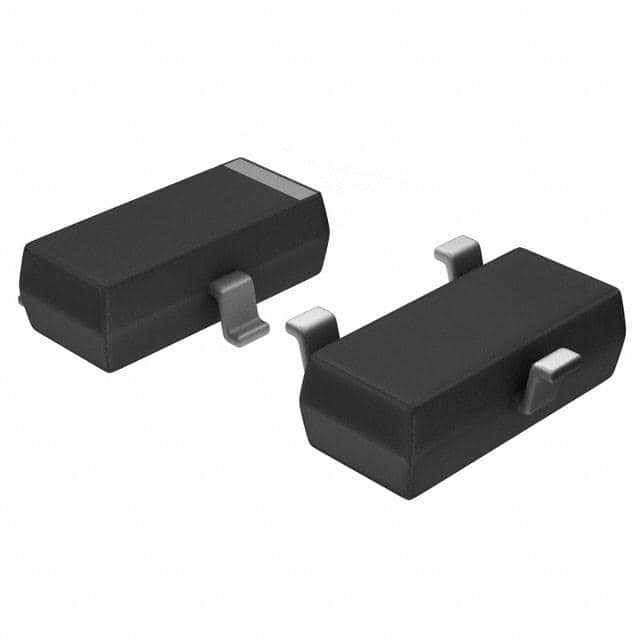

封装 SOT-23-3
长度 2.92 mm
宽度 1.3 mm
高度 0.93 mm
封装 SOT-23-3
工作温度 -40℃ ~ 105℃ TA
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
LM809M3-4.38/NOPB TI 德州仪器 | 当前型号 | 当前型号 |
LM809M3X-4.38/NOPB 德州仪器 | 类似代替 | LM809M3-4.38/NOPB和LM809M3X-4.38/NOPB的区别 |
STM809MWX6F 意法半导体 | 功能相似 | LM809M3-4.38/NOPB和STM809MWX6F的区别 |
MIC1815-10UY 迈瑞 | 功能相似 | LM809M3-4.38/NOPB和MIC1815-10UY的区别 |
