具有使能功能和低输出电压的汽车类 150mA、16V、低压降稳压器 5-SOT-23 -40 to 125
The LP2985LV-N is a 150-mA, fixed-output voltage regulator designed to provide high performance and low noise in applications requiring output voltages ≤ 2 V.
Using an optimized vertically integrated PNP VIP process, the LP2985LV-N delivers unequaled performance in all specifications critical to battery-powered designs: Ground Pin Current: Typically 825 µA at 150-mA load, and 75 µA at 1-mA load. Enhanced Stability: The LP2985LV-N is stable with output capacitor equivalent series resistance ESR as low as 5 mΩ, which allows the use of ceramic capacitors on the output.Sleep Mode: Less than 1-µA quiescent current when ON/OFF pin is pulled low.Precision Output: 1% tolerance output voltages available A grade. Low Noise: By adding a 10-nF bypass capacitor, output noise can be reduced to 30 µV typical.
输出接口数 1
输出电压 2 V
输出电流 150 mA
供电电流 95µA ~ 2.5mA
静态电流 0.065 mA
输出电容类型 Ceramic
跌落电压 0.12V @50mA,0.28V @150mA
调节输出数 1
输入电压Max 16 V
输入电压Min 2.2 V
输出电压Min 2 V
输出电流Max 0.15 A
工作温度Max 125 ℃
工作温度Min -40 ℃
精度 ±3 %
输入电压 ≤16 V
安装方式 Surface Mount

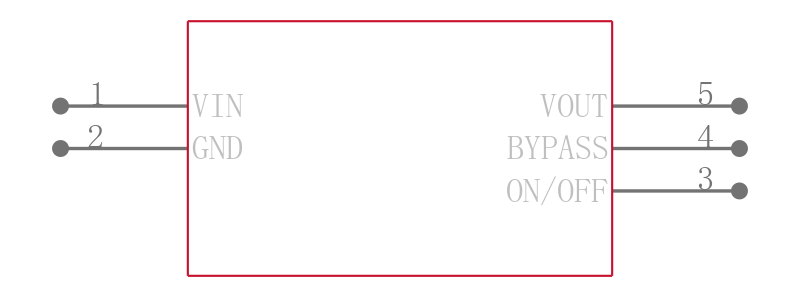

引脚数 5
封装 SOT-23-5
封装 SOT-23-5
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
LP2985IM5X-2.0/NOPB TI 德州仪器 | 当前型号 | 当前型号 |
LP2985IM5-2.0/NOPB 德州仪器 | 类似代替 | LP2985IM5X-2.0/NOPB和LP2985IM5-2.0/NOPB的区别 |
LP2985IM5X-2.0 德州仪器 | 类似代替 | LP2985IM5X-2.0/NOPB和LP2985IM5X-2.0的区别 |
