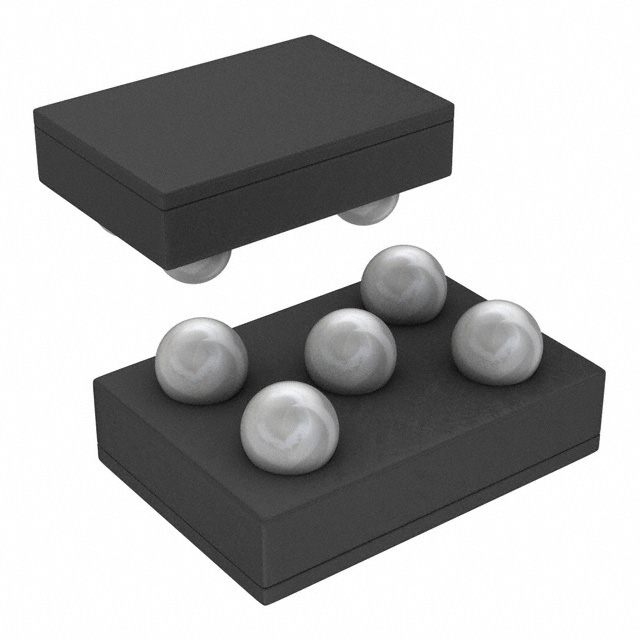

低压差稳压器 Micropower, 150mA Low-Noise Ultra Low-Dropout CMOS Voltage Regulator 5-DSBGA -40 to 125
PMIC - 稳压器 - 线性 正 固定 输出 150mA 5-DSBGA(1.41x1.08)
得捷:
IC REG LINEAR 2.8V 150MA 5DSBGA
立创商城:
LP3985ITL-2.8/NOPB
德州仪器TI:
150-mA, low-dropout voltage regulator with bypass & enable
贸泽:
低压差稳压器 Micropower, 150mA Low-Noise Ultra Low-Dropout CMOS Voltage Regulator 5-DSBGA -40 to 125
艾睿:
This LDO LP3985ITL-2.8/NOPB linear regulator from Texas Instruments is used to manipulate the voltage level of your circuit. Its typical dropout voltage at current is 0.0004@1mA|0.02@50mA|0.045@100mA|0.06@150mA V. This device has a maximum power dissipation of 244 mW. It has an overall accuracy of ±2 %. This voltage regulation device&s;s single output can produce a current up to 0.15 A. Supply your circuit with sufficient power by implementing this, which requires a minimum input voltage of 2.5 V that does not exceed 6 V. With a fixed output that has a voltage of 2.8 V, this is power management at its best. Its maximum power dissipation is 244 mW. Tape and reel packaging will encase this product during shipment, in order to ensure safe delivery and enable quick mounting of components. The maximum dropout voltage is 0.002@1mA|0.035@50mA|0.07@100mA|0.1@150mA V. This voltage regulation device has a minimum operating temperature of -40 °C and a maximum of 125 °C. Its polarity is positive.
Chip1Stop:
LDO Regulator Pos 2.8V 0.15A 5-Pin uSMD T/R
Verical:
LDO Regulator Pos 2.8V 0.15A 5-Pin DSBGA T/R
DeviceMart:
IC REG LDO 2.8V .15A 5MICROSMD
容差 ±3 %
输出接口数 1
输出电压 2.8 V
输出电流 150 mA
供电电流 150µA ~ 250µA
耗散功率 244 mW
静态电流 85.0 µA
输出电容类型 Ceramic
跌落电压 0.0004V @1mA,0.045V @100mA,0.02V @50mA,0.06V @150mA
调节输出数 1
输入电压Max 6 V
输入电压Min 2.5 V
输出电压Min 2.8 V
输出电流Max 0.15 A
工作温度Max 125 ℃
工作温度Min -40 ℃
耗散功率Max 244 mW
精度 ±2 %
输入电压 ≤6 V
安装方式 Surface Mount
引脚数 5
封装 WFBGA-5
封装 WFBGA-5
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
LP3985ITL-2.8/NOPB TI 德州仪器 | 当前型号 | 当前型号 |
LP3985ITLX-2.8/NOPB 德州仪器 | 类似代替 | LP3985ITL-2.8/NOPB和LP3985ITLX-2.8/NOPB的区别 |
