LDO(低压降)线性稳压器,STMicroelectronics,1.5A 至 2A### LDO(低压降)线性电压调节器,STMicroelectronics低压降或 LDO 为线性电压稳压器。 我们有多种系列的线性稳压器。 LDO 稳压器可在输入 - 输出差分电压较小时运行。 LDO 电压稳压器可提供快速瞬态响应、宽输入电压范围、低静态电流、低噪声、高 PSRR。
LDO(低压降)线性稳压器,STMicroelectronics,1.5A 至 2A
### LDO(低压降)线性电压调节器,STMicroelectronics
低压降或 LDO 为线性电压稳压器。 我们有多种系列的线性稳压器。 LDO 稳压器可在输入 - 输出差分电压较小时运行。 LDO 电压稳压器可提供快速瞬态响应、宽输入电压范围、低静态电流、低噪声、高 PSRR。
得捷:

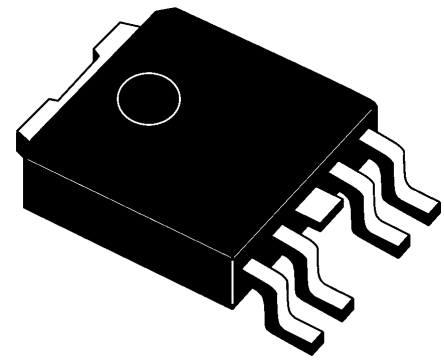

IC REG LINEAR 5V 1.5A PPAK
立创商城:
正 Vin=14V Vout=5V 1.5A 64dB@120Hz
欧时:
STMicroelectronics LD29150PT50R LDO 稳压器, 5 V输出, 1.5A最大输出, ±1%精确度, 5引脚 PPAK封装
e络盟:
固定LDO稳压器, 30V, 400mV压降, 5V/1.5A输出, TO-252AD-5
艾睿:
Never worry about components seeing unstable voltages again by implementing this LDO LD29150PT50R linear regulator manufactured by STMicroelectronics. Its typical dropout voltage at current is 0.1@250mA|0.2@750mA|0.4@1.5A V. It has an overall accuracy of ±1 %. This voltage regulation device&s;s single output can produce a current up to 1.5 A. Supply your circuit with sufficient power by implementing this, which does not exceed 30 V. With a fixed output that has a voltage of 5 V, this is power management at its best. Maintain a constant voltage level with a load regulation of 1% and line regulation of 0.5%. This product will be shipped in tape and reel packaging to allow for quick mounting and safe delivery. This voltage regulation device has a minimum operating temperature of -40 °C and a maximum of 125 °C. Its polarity is positive. The maximum dropout voltage is 0.7@1.5A V.
安富利:
LDO Regulator Pos 5V 1.5A 5-Pin4+Tab PPAK T/R
富昌:
LD29 系列 5 V PPAK 5引线 1.5 A 极低压差 稳压器
Chip1Stop:
LDO Regulator Pos 5V 1.5A 5-Pin4+Tab PPAK T/R
Verical:
LDO Regulator Pos 5V 1.5A 5-Pin4+Tab PPAK T/R
Win Source:
Linear Voltage Regulator IC Positive Fixed 1 Output 5V 1.5A PPAK
输出接口数 1
输入电压DC 13.0V max
输出电压 5 V
输出电流 1.5 A
针脚数 5
静态电流 15 mA
跌落电压 0.4V @1.5A
输入电压Max 30 V
输出电流Max 1.5 A
工作温度Max 125 ℃
工作温度Min -40 ℃
精度 ±1 %
输入电压 ≤14 V
安装方式 Surface Mount
引脚数 5
封装 TO-252-5
长度 6.6 mm
宽度 6.2 mm
高度 2.4 mm
封装 TO-252-5
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
LD29150PT50R ST Microelectronics 意法半导体 | 当前型号 | 当前型号 |
LD29150PT50 意法半导体 | 完全替代 | LD29150PT50R和LD29150PT50的区别 |
