LE50CD-TR

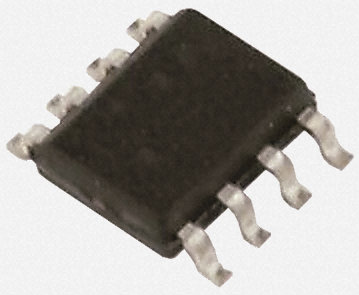

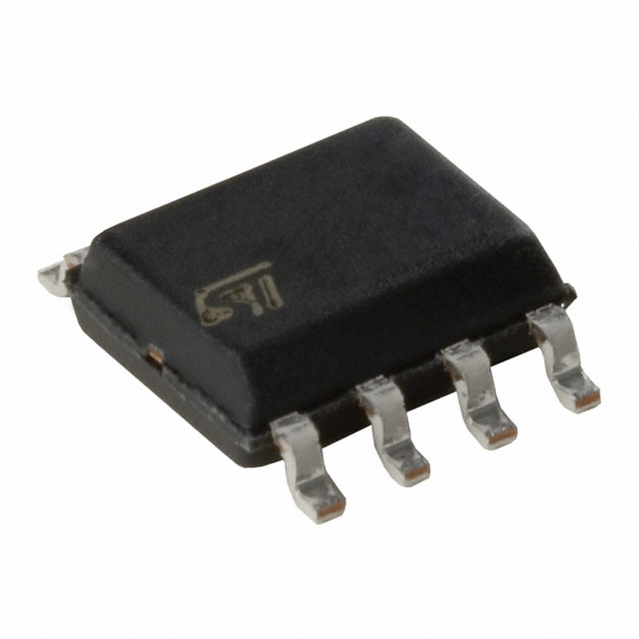

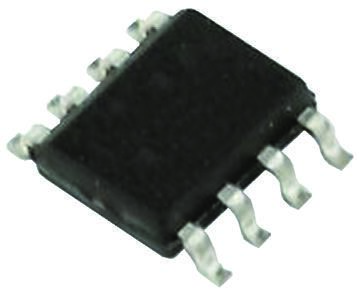

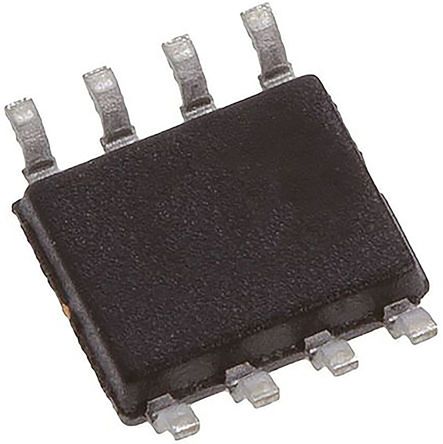

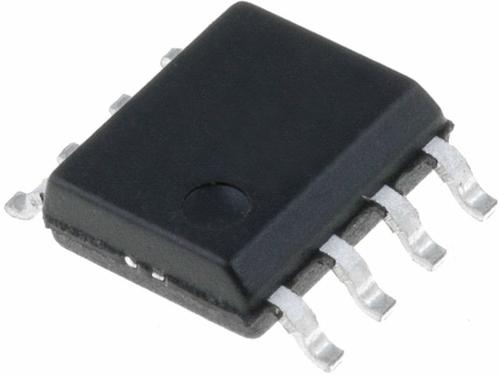

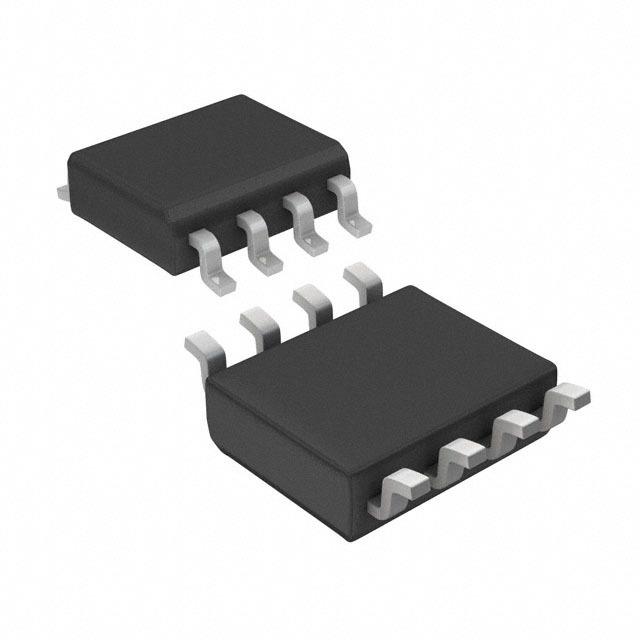

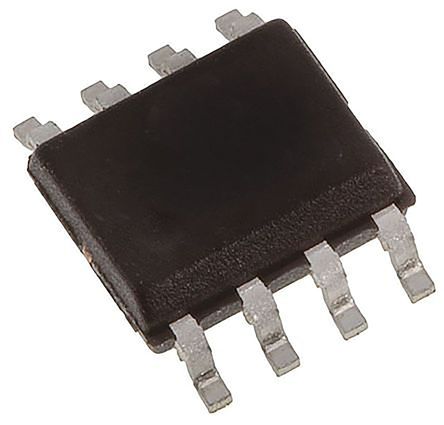

STMICROELECTRONICS  LE50CD-TR  稳压器, 固定LDO, 18V输入, 200mV压差, 5V/350mA输出, SOIC-8

LDO（低压降）线性电压稳压器，STMicroelectronics，高达 100mA

### LDO（低压降）线性电压调节器，STMicroelectronics

低压降或 LDO 为线性电压稳压器。 我们有多种系列的线性稳压器。 LDO 稳压器可在输入 - 输出差分电压较小时运行。 LDO 电压稳压器可提供快速瞬态响应、宽输入电压范围、低静态电流、低噪声、高 PSRR。

欧时:
STMicroelectronics LE50CD-TR LDO 稳压器, 5 V输出, 100mA最大输出, ±2%精确度, 8引脚 SOIC封装

得捷:
IC REG LINEAR 5V 100MA 8SO

立创商城:
正 Vin=18V Vout=5V 100mA 76dB

艾睿:
Never worry about components seeing unstable voltages again by implementing this LDO LE50CD-TR linear regulator manufactured by STMicroelectronics. It has an overall accuracy of ±2 %. Its typical dropout voltage at current is 0.2@100mA V. This voltage regulation device&s;s single output can produce a current up to 0.1 A. With a voltage no larger than 18 V, this will supply sufficient power to your circuit. With a fixed output that has a voltage of 5 V, this is power management at its best. At a load regulation of 25mV and line regulation of 30mV a constant current can be produced at the output of your circuit. In order to ensure safe delivery and enable quick mounting of this component after delivery, it will be encased in tape and reel packaging during shipment. The maximum dropout voltage is 0.4@100mA V. Its polarity is positive. This voltage regulation device has a minimum operating temperature of -40 °C and a maximum of 125 °C.

安富利:
LDO Regulator Pos 5V 0.1A 8-Pin SO N T/R

富昌:
LEXX Series 100 mA 5 V Fixed VLDO Voltage Regulator with Inhibit - SOIC-8

Chip1Stop:
LDO Regulator Pos 5V 0.1A 8-Pin SO N T/R

TME:
Voltage regulator; LDO, linear, fixed; 5V; 0.1A; SO8; SMD; -40÷125°C

Verical:
LDO Regulator Pos 5V 0.1A 8-Pin SO N T/R

儒卓力:
**LDO.VREG POS 5V 0,1A 2% SO8 **

DeviceMart:
IC REG LDO 5V .1A 8-SOIC
