LP2985-33DBVT

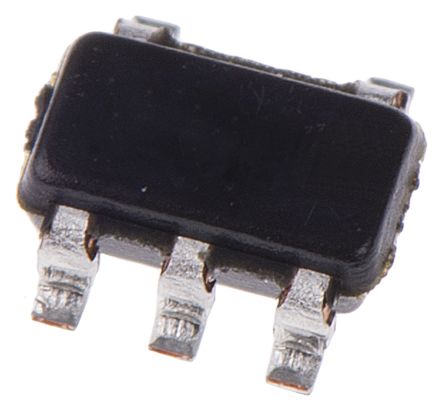

TEXAS INSTRUMENTS  LP2985-33DBVT  固定电压稳压器, LDO, 2.2V至16V, 280mV压差, 3.3V输出, 150mA输出, SOT-23-5

LDO（低压降）线性稳压器，150mA，3.0V 至 3.9V，Texas Instruments

### LDO（低压降）线性稳压器，Texas Instruments

低压降或 LDO 为线性电压稳压器。 我们有多种系列的线性稳压器。 LDO 稳压器可在输入 - 输出差分电压较小时运行。 LDO 电压稳压器可提供快速瞬态响应、宽输入电压范围、低静态电流、低噪声、高 PSRR。

欧时:
Texas Instruments LP2985-33DBVT LDO 稳压器, 3.3 V输出, 150mA最大输出, ±1.5%精确度, 2.2 → 16 V输入

得捷:
IC REG LINEAR 3.3V 150MA SOT23-5

立创商城:
正 Vin=16V Vout=3.3V 150mA 45dB@1kHz

德州仪器TI:
150-mA, 16-V, low-dropout voltage regulator with enable

贸泽:
LDO Voltage Regulators 150-mA Low-Noise 1.5% tolerance

艾睿:
This LDO LP2985-33DBVT linear regulator from Texas Instruments gives you control over the voltage levels of your circuit. It has an overall accuracy of ±1.5 %. Its typical dropout voltage at current is 0.001@0A|0.007@1mA|0.04@10mA|0.12@50mA|0.28@150mA V. This voltage regulation device&s;s single output can produce a current up to 0.15 A. This will operate at a minimum voltage of 2.2 V and a maximum voltage of 16 V, making it easy to control the power in your circuit. With a fixed output that has a voltage of 3.3 V, this is power management at its best. Using a line regulation of 0.014%/V is needed for a programmable DC power supply. This component will be shipped in tape and reel packaging to allow for effective mounting and safe delivery. This voltage regulation device has a minimum operating temperature of -40 °C and a maximum of 125 °C. Its polarity is positive. The maximum dropout voltage is 0.003@0A|0.01@1mA|0.06@10mA|0.15@50mA|0.35@150mA V.

安富利:
LDO Regulator Pos 3.3V 0.15A 5-Pin SOT-23 T/R

Chip1Stop:
Single Channel LDO Single Output LDO, 150mA, Fixed3.3V, 1.5% Tolerance, Low Quiescent Current, Low Noise LDO Regulator Pos 3.3V 0.15A 5-Pin SOT-23 T/R

Verical:
LDO Regulator Pos 3.3V 0.15A 5-Pin SOT-23 T/R

Newark:
# TEXAS INSTRUMENTS  LP2985-33DBVT  Fixed LDO Voltage Regulator, 2.2V to 16V, 280mV Dropout, 3.3Vout, 150mAout, SOT-23-5

Win Source:
IC REG LDO 3.3V 0.15A SOT23-5
