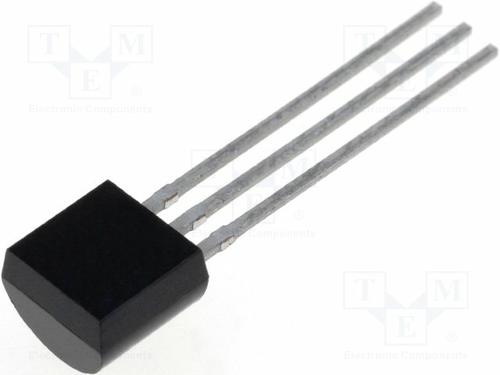

LP2950 系列 30 V 100 mA 低功耗 低压差稳压器 - TO-92
The is a low power, micropower low dropout LDO voltage regulator in 3 pin TO-92 package. It is specifically designed to maintain proper regulation with an extremely low input to output voltage differential. This device features a very low quiescent bias current of 75µA and it is capable of supplying output currents in excess of 100mA. Due to low input to output voltage differential and bias current specifications, the device is ideally suited for battery powered applications.
工作电压 1.25V ~ 29V
无卤素状态 Halogen Free
输出接口数 1
输入电压DC 30.0V max
输出电压 5 V
输出电流 100 mA
供电电流 120µA ~ 12mA
针脚数 3
极性 P-Channel
静态电流 0.075 mA
跌落电压 350 mV
输入电压Max 30 V
输入电压Min 6 V
输出电压Min 5 V
工作温度Max 125 ℃
工作温度Min -40 ℃
精度 0.5 %
输入电压 30 V
安装方式 Through Hole
引脚数 3
封装 TO-226-3
长度 5.2 mm
宽度 4.19 mm
高度 5.33 mm
封装 TO-226-3
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Bag
制造应用 工业, Power Management, Industrial, 消费电子产品, Consumer Electronics, 电源管理
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
LP2950ACZ-5.0G ON Semiconductor 安森美 | 当前型号 | 当前型号 |
LP2950ACZ-5.0RAG 安森美 | 类似代替 | LP2950ACZ-5.0G和LP2950ACZ-5.0RAG的区别 |
LP2950CZ-5.0G 安森美 | 类似代替 | LP2950ACZ-5.0G和LP2950CZ-5.0G的区别 |
LP2950CZ-5.0RPG 安森美 | 类似代替 | LP2950ACZ-5.0G和LP2950CZ-5.0RPG的区别 |
