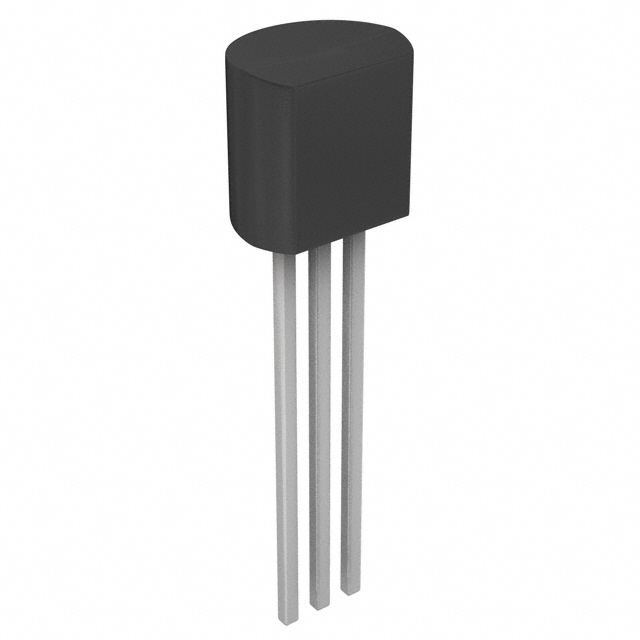

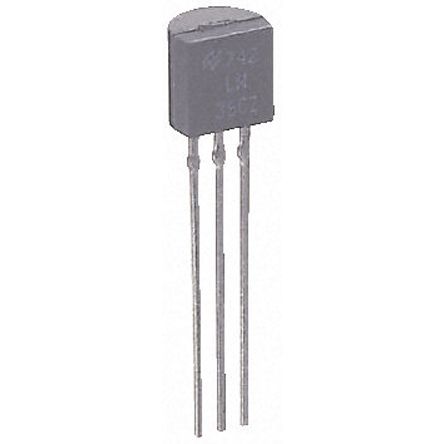

TEXAS INSTRUMENTS LM4041DIZ-ADJ/NOPB 电压基准, 精密, 分流 - 可调, LM4041系列, 1.233V至10V, TO-226AA-3
Even in the event of large power supply variations, this voltage reference power management device from Texas Instruments can produce and maintain a precise DC voltage. It has an initial accuracy of 1%. With an output that has a voltage of 1.24 to 10 V, this is power management at its best. Operate at a constant current by utilizing the load regulation of 2mVTyp. This voltage reference circuit supports shunt topology. It runs with a maximum temperature coefficient of 20ppm/°CTyp. This voltage reference circuit has an operating temperature range of -40 °C to 85 °C.
容差 ±1 %
输出电压 1.24V ~ 10V
输出电流 12 mA
通道数 1
针脚数 3
输出电压Max 10 V
输出电压Min 1.233 V
输出电流Max 12 mA
工作温度Max 85 ℃
工作温度Min -40 ℃
安装方式 Through Hole
引脚数 3

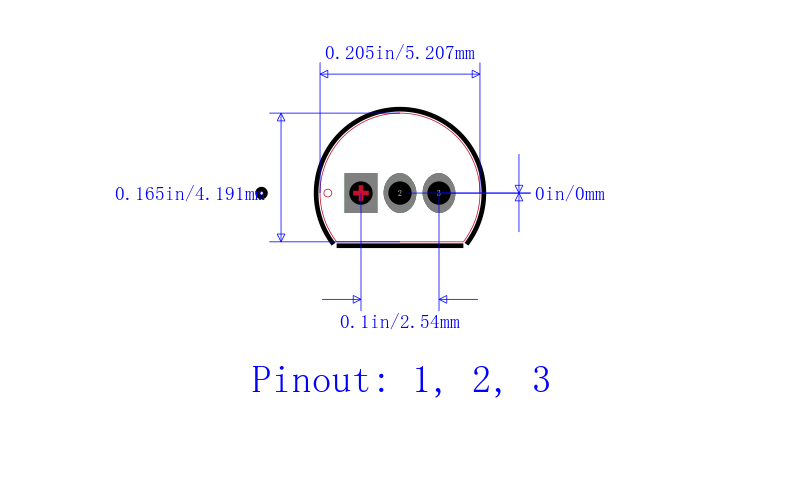

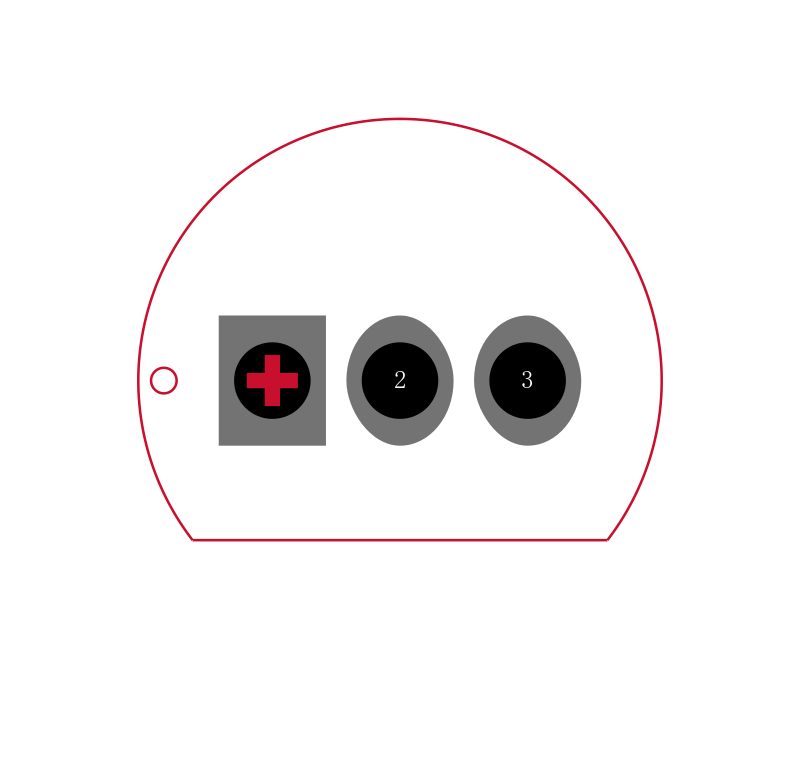

封装 TO-226-3
长度 5.2 mm
宽度 4.19 mm
高度 5.2 mm
封装 TO-226-3
工作温度 -40℃ ~ 85℃ TA
温度系数 ±150 ppm/℃
产品生命周期 Active
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
LM4041DIZ-ADJ/NOPB TI 德州仪器 | 当前型号 | 当前型号 |
LM4041DIZ-ADJ/LFT1 德州仪器 | 类似代替 | LM4041DIZ-ADJ/NOPB和LM4041DIZ-ADJ/LFT1的区别 |
LM336Z-5.0 美国国家半导体 | 类似代替 | LM4041DIZ-ADJ/NOPB和LM336Z-5.0的区别 |
LM4041CIZ-ADJ/NOPB 德州仪器 | 类似代替 | LM4041DIZ-ADJ/NOPB和LM4041CIZ-ADJ/NOPB的区别 |
