精密微功耗并联型电压基准 PRECISION MICROPOWER SHUNT VOLTAGE REFERENCE
Even in the event of large power supply variations, this voltage reference power management device from Texas Instruments can produce and maintain a precise DC voltage. With an output that has a voltage of 1.225 to 10 V, this is power management at its best. The best way to provide power to your application is by using this, which needs a voltage lower than 15 V. It has an initial accuracy of 1%. Operate at a constant current by utilizing the load regulation of 6mV. This voltage reference circuit supports shunt topology. This component will be shipped in tape and reel packaging to allow for effective mounting and safe delivery. It runs with a maximum temperature coefficient of 20ppm/°CTyp. This voltage reference circuit has a minimum operating temperature of -40 °C and a maximum of 125 °C.
容差 ±1 %
输出电压 1.225V ~ 10V
输出电流 12 mA
通道数 1
输入电压Max 15 V
输出电压Max 10 V
输出电压Min 1.233 V
输出电流Max 25 ma
工作温度Max 125 ℃
工作温度Min 40 ℃
精度 ±1 %
输入电压 15 V
安装方式 Surface Mount
引脚数 3

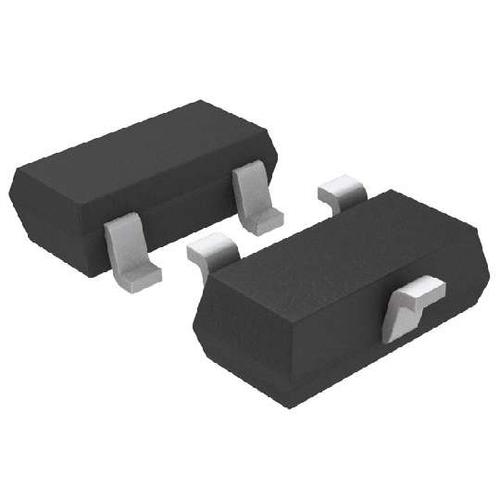

封装 SOT-23-3
长度 2.92 mm
宽度 1.3 mm
高度 1 mm
封装 SOT-23-3
工作温度 -40℃ ~ 125℃
温度系数 ±150 ppm/℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
LM4041DQDBZR TI 德州仪器 | 当前型号 | 当前型号 |
LM385M3-2.5/NOPB 德州仪器 | 类似代替 | LM4041DQDBZR和LM385M3-2.5/NOPB的区别 |
LM385M3X-1.2/NOPB 德州仪器 | 类似代替 | LM4041DQDBZR和LM385M3X-1.2/NOPB的区别 |
LM4041CIM3-ADJ/NOPB 德州仪器 | 类似代替 | LM4041DQDBZR和LM4041CIM3-ADJ/NOPB的区别 |
