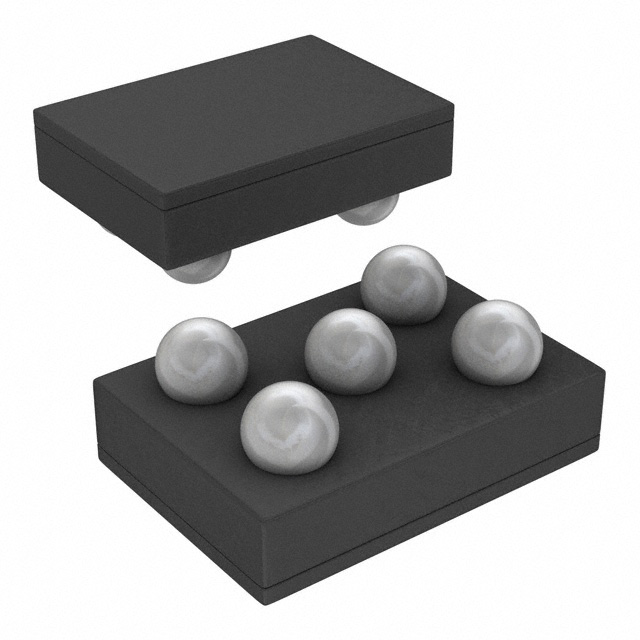

LP3985ITLX-3.3/NOPB

低压差稳压器 Micropower, 150mA Low-Noise Ultra Low-Dropout CMOS Voltage Regulator 5-DSBGA -40 to 125

PMIC - 稳压器 - 线性 正 固定 输出 150mA 5-DSBGA（1.41x1.08）

立创商城:
LP3985ITLX-3.3/NOPB

德州仪器TI:
150-mA, low-dropout voltage regulator with bypass & enable

得捷:
IC REG LINEAR 3.3V 150MA 5DSBGA

贸泽:
低压差稳压器 Micropower, 150mA Low-Noise Ultra Low-Dropout CMOS Voltage Regulator 5-DSBGA -40 to 125

艾睿:
Make a theoretical system actual by providing stable voltages with this LDO LP3985ITLX-3.3/NOPB linear regulator from Texas Instruments. It has an overall accuracy of ±2 %. This device has a maximum power dissipation of 244 mW. Its typical dropout voltage at current is 0.0004@1mA|0.02@50mA|0.045@100mA|0.06@150mA V. This voltage regulation device&s;s single output can produce a current up to 0.15 A. It only needs a voltage of at least 2.5 V while not exceeding 6 V to effectively power your circuit. With a fixed output that has a voltage of 3.3 V, this is power management at its best. Its maximum power dissipation is 244 mW. This product will be shipped in tape and reel packaging so that components can be mounted effectively. This voltage regulation device has a minimum operating temperature of -40 °C and a maximum of 125 °C. Its polarity is positive. The maximum dropout voltage is 0.002@1mA|0.035@50mA|0.07@100mA|0.1@150mA V.

安富利:
LDO Regulator Pos 3.3V 0.15A 5-Pin uSMD T/R

Verical:
LDO Regulator Pos 3.3V 0.15A 5-Pin DSBGA T/R
