LDO(低压降)线性电压调节器,150mA,4.0V 至 12V,Texas Instruments### LDO(低压降)线性电压调节器,Texas Instruments低压降或 LDO 为线性电压稳压器。 我们有多种系列的线性稳压器。 LDO 稳压器可在输入 - 输出差分电压较小时运行。 LDO 电压稳压器可提供快速瞬态响应、宽输入电压范围、低静态电流、低噪声、高 PSRR。
LDO(低压降)线性稳压器,150mA,4.0V 至 12V,Texas Instruments
### LDO(低压降)线性稳压器,Texas Instruments
低压降或 LDO 为线性电压稳压器。 我们有多种系列的线性稳压器。 LDO 稳压器可在输入 - 输出差分电压较小时运行。 LDO 电压稳压器可提供快速瞬态响应、宽输入电压范围、低静态电流、低噪声、高 PSRR。
得捷:
IC REG LINEAR 6.1V 150MA SOT23-5
立创商城:

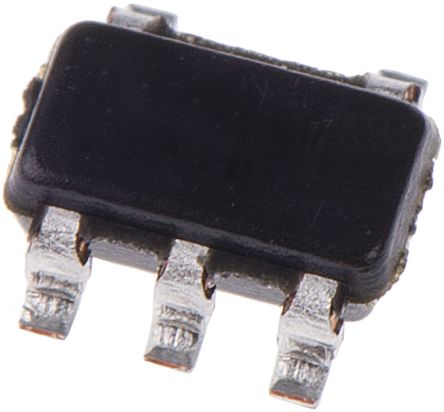

LP2985AIM5-6.1/NOPB
德州仪器TI:
150-mA, 16-V, low-dropout voltage regulator with enable
欧时:
### LDO(低压降)线性稳压器,150mA,4.0V 至 12V,Texas Instruments### LDO(低压降)线性稳压器,Texas Instruments低压降或 LDO 为线性电压稳压器。 我们有多种系列的线性稳压器。 LDO 稳压器可在输入 - 输出差分电压较小时运行。 LDO 电压稳压器可提供快速瞬态响应、宽输入电压范围、低静态电流、低噪声、高 PSRR。
e络盟:
固定电压稳压器, LDO, 2.5V至16V, 280mV压差, 6.1V输出, 150mA输出, SOT-23-5
艾睿:
Say goodbye to unstable voltages with this LDO LP2985AIM5-6.1/NOPB linear regulator from Texas Instruments. Its typical dropout voltage at current is 0.0001@0mA|0.007@1mA|0.04@10mA|0.12@50mA|0.28@150mA V. It has an overall accuracy of ±2.5 %. This voltage regulation device&s;s single output can produce a current up to 0.15 A. It only needs a voltage of at least 2.5 V while not exceeding 16 V to effectively power your circuit. With a fixed output that has a voltage of 6.1 V, this is power management at its best. A line regulation of 0.014%/V is necessary for providing a constant voltage level at your output. In order to guarantee safe delivery and allow for quick mounting of this component after delivery, it will be enclosed in tape and reel packaging during shipment. The maximum dropout voltage is 0.003@0mA|0.01@1mA|0.06@10mA|0.15@50mA|0.35@150mA V. Its polarity is positive. This voltage regulation device has an operating temperature range of -40 °C to 125 °C.
Chip1Stop:
LDO Regulator Pos 6.1V 0.15A 5-Pin SOT-23 T/R
Verical:
LDO Regulator Pos 6.1V 0.15A 5-Pin SOT-23 T/R
Newark:
# TEXAS INSTRUMENTS LP2985AIM5-6.1/NOPB Fixed LDO Voltage Regulator, 2.5V to 16V, 280mV Dropout, 6.1Vout, 150mAout, SOT-23-5
输出接口数 1
输出电压 6.1 V
输出电流 150 mA
供电电流 95µA ~ 2.5mA
针脚数 5
静态电流 65.0 µA
输出电容类型 Ceramic
跌落电压 280 mV
调节输出数 1
输入电压Max 16 V
输入电压Min 2.5 V
输出电压Min 6.1 V
输出电流Max 350 mA
工作温度Max 125 ℃
工作温度Min -40 ℃
精度 ±2.5 %
输入电压 ≤16 V
安装方式 Surface Mount
引脚数 5
封装 SOT-23-5
长度 3.05 mm
宽度 1.75 mm
高度 1.3 mm
封装 SOT-23-5
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/06/15
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
LP2985AIM5-6.1/NOPB TI 德州仪器 | 当前型号 | 当前型号 |
LP2985IM5-6.1/NOPB 德州仪器 | 类似代替 | LP2985AIM5-6.1/NOPB和LP2985IM5-6.1/NOPB的区别 |
LP2985AIM5X-6.1/NOPB 德州仪器 | 类似代替 | LP2985AIM5-6.1/NOPB和LP2985AIM5X-6.1/NOPB的区别 |
LP2985AIM5X-6.1 德州仪器 | 类似代替 | LP2985AIM5-6.1/NOPB和LP2985AIM5X-6.1的区别 |
