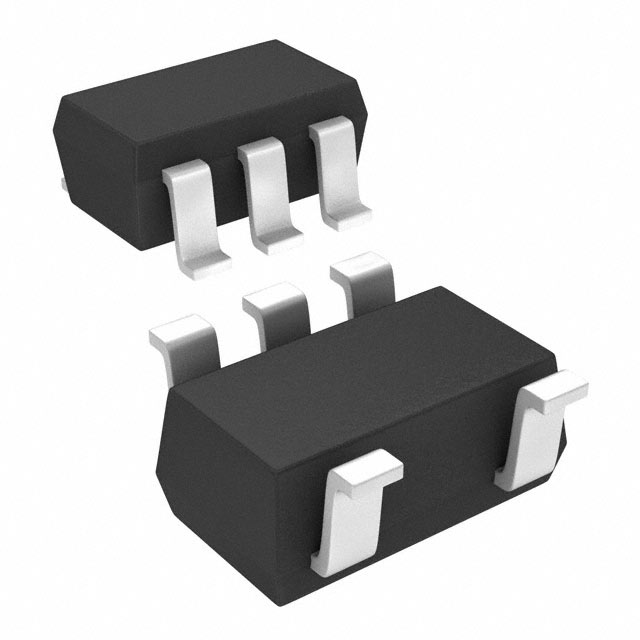

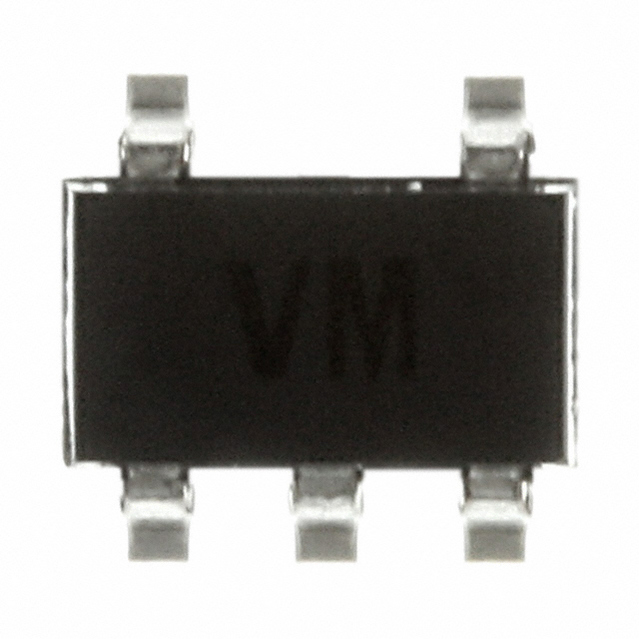

LDS3985 系列 1.8 V 300 mA 低压差 低噪声 BICMOS 稳压器 - SOT-23-5L
Use this LDO linear regulator from STMicroelectronics to vary your voltage levels to your desired level. Its typical dropout voltage at current is 0.0004@1mA|0.06@150mA|0.15@300mA V. This voltage regulation device"s single output can produce a current up to 0.55Typ A. Supply your circuit with sufficient power by implementing this, which requires a minimum input voltage of 2.5 V that does not exceed 6 V. With a fixed output that has a voltage of 1.8 V, this is power management at its best. Users like the load regulation of 0.01%/mA and line regulation of 0.1%/V. Tape and reel packaging will encase the product during shipment, ensuring safe delivery and enabling quick mounting of components. This voltage regulation device has a minimum operating temperature of -40 °C and a maximum of 125 °C. The maximum dropout voltage is 0.002@1mA|0.1@150mA|0.25@300mA V. Its polarity is positive.
输出接口数 1
输出电压 1.8 V
输出电流 300 mA
针脚数 5
静态电流 300 µA
跌落电压 0.0004V @1mA,0.15V @300mA,0.06V @150mA
输入电压Max 6 V
输入电压Min 2.5 V
工作温度Max 125 ℃
工作温度Min -40 ℃
输入电压 2.5V ~ 6V
安装方式 Surface Mount
引脚数 5
封装 SOT-23-5
封装 SOT-23-5
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
