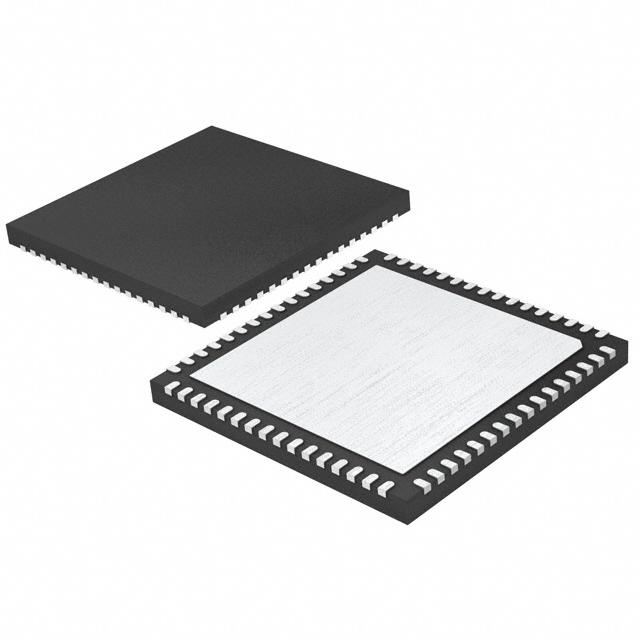

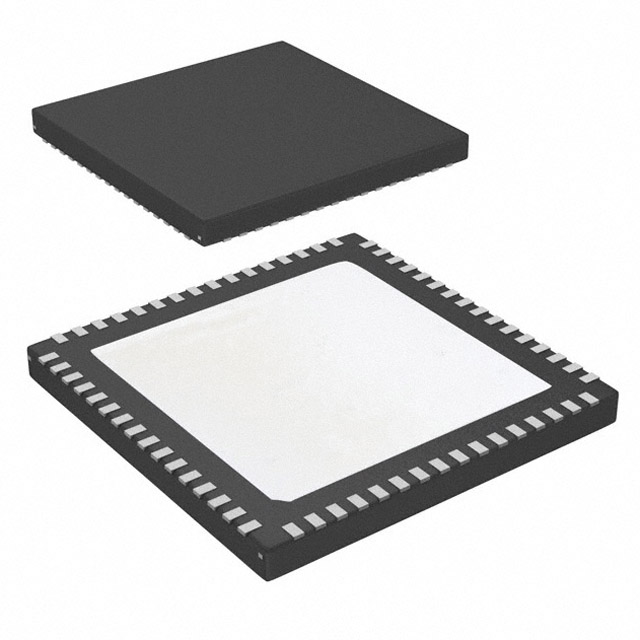

LINEAR TECHNOLOGY LTC2299IUP#PBF 模数转换器, 双路, 14 bit, 80 MSPS, 单, 2.7 V, 3.4 V, QFN
If you require your analog signals to be converted into digital data then this ADC from is perfect. This device is based on Pipelined architecture. It has a single-ended and differential input signal. Its maximum power dissipation is 516 mW. This device"s digital interface is parallel. This ADC has a resolution of 14bit. This ADC has an input voltage of ±0.5V/±1 V. This ADC has a temperature range of -40 °C to 85 °C.
电源电压DC 2.70V min
供电电流 148 mA
电路数 2
针脚数 64
位数 14
耗散功率 444 mW
采样率 80 Msps
模数转换数ADC 2
输入数 2
工作温度Max 85 ℃
工作温度Min -40 ℃
耗散功率Max 516 mW
输入通道数 2
电源电压Max 3.4 V
电源电压Min 2.7 V
安装方式 Surface Mount
引脚数 64
封装 QFN-64
高度 0.75 mm
封装 QFN-64
工作温度 -40℃ ~ 85℃
产品生命周期 Unknown
包装方式 Each
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
LTC2299IUP#PBF Linear Technology 凌力尔特 | 当前型号 | 当前型号 |
LTC2299IUP 凌力尔特 | 完全替代 | LTC2299IUP#PBF和LTC2299IUP的区别 |
LTC2299CUP#PBF 凌力尔特 | 类似代替 | LTC2299IUP#PBF和LTC2299CUP#PBF的区别 |
