低压差稳压器

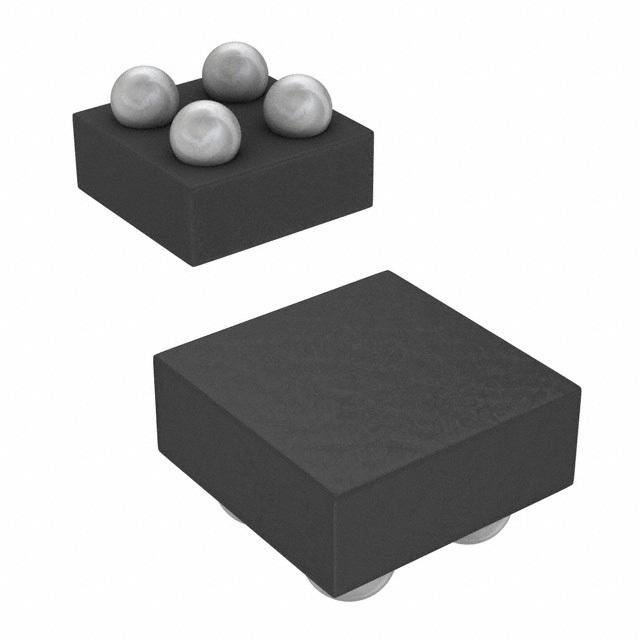

PMIC - 稳压器 - 线性 输出 300mA 4-DSBGA(1x1)
得捷:
IC REG LINEAR 2V 300MA 4DSBGA
立创商城:
LP3991TL-2.0/NOPB
德州仪器TI:
300-mA, low-dropout voltage regulator with enable
贸泽:
低压差稳压器
艾睿:
Never worry about components not turning off and on due to lack of voltage with this LDO LP3991TL-2.0/NOPB linear regulator from Texas Instruments. Its typical dropout voltage at current is 0.055@150mA|0.11@300mA V. It has an overall accuracy of ±1 %. This voltage regulation device&s;s single output can produce a current up to 0.3 A. It only needs a voltage of at least 1.65 V while not exceeding 4 V to effectively power your circuit. With a fixed output that has a voltage of 2 V, this is power management at its best. In order to ensure safe delivery and enable quick mounting of this component after delivery, it will be encased in tape and reel packaging during shipment. This voltage regulation device has an operating temperature range of -40 °C to 85 °C. Its polarity is positive. The maximum dropout voltage is 0.09@150mA|0.18@300mA V.
Verical:
LDO Regulator Pos 2V 0.3A 4-Pin DSBGA T/R
容差 ±3 %
输出接口数 1
输出电压 2 V
输出电流 300 mA
静态电流 50.0 µA
输出电容类型 Ceramic
跌落电压 0.055V @150mA,0.11V @300mA
调节输出数 1
输入电压Max 4 V
输入电压Min 1.65 V
输出电流Max 0.3 A
工作温度Max 85 ℃
工作温度Min -40 ℃
精度 ±1 %
输入电压 ≤4 V
安装方式 Surface Mount
引脚数 4
封装 DSBGA-4
封装 DSBGA-4
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
LP3991TL-2.0/NOPB TI 德州仪器 | 当前型号 | 当前型号 |
LP3991TLX-2.0/NOPB 德州仪器 | 类似代替 | LP3991TL-2.0/NOPB和LP3991TLX-2.0/NOPB的区别 |
