具有使能功能和低输出电压的 150mA、低 IQ、低压降稳压器 4-DSBGA -40 to 125
The LP3990 regulator is designed to meet the requirements of portable, battery-powered systems providing an accurate output voltage, low-noise, and low-quiescent current. The LP3990 will provide a 0.8-V output from the low input voltage of 2 V at up to a 150-mA load current. When switched into shutdown mode via a logic signal at the enable pin EN, the power consumption is reduced to virtually zero.
The LP3990 is designed to be stable with space-saving ceramic capacitors with values as low as 1 µF.
Performance is specified for a –40°C to 125°C junction temperature range.
For output voltages other than 0.8 V, 1.2 V, 1.35 V, 1.5 V, 1.8 V, 2.5 V, 2.8 V, or 3.3 V, please contact the Texas Instruments sales office.
输出接口数 1
输出电压 2.8 V
输出电流 150 mA
静态电流 0.043 mA
输出电容类型 Ceramic
跌落电压 0.12V @150mA
调节输出数 1
输入电压Max 6 V
输入电压Min 2 V
输出电流Max 0.15 A
工作温度Max 85 ℃
工作温度Min -40 ℃
精度 ±1 %
输入电压 ≤6 V
安装方式 Surface Mount

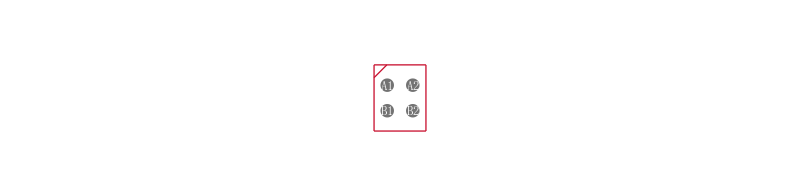

引脚数 4

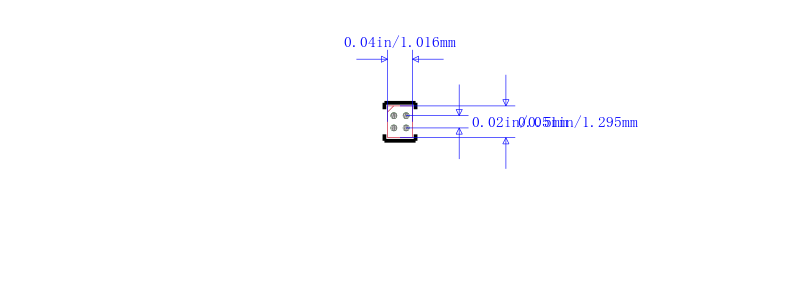

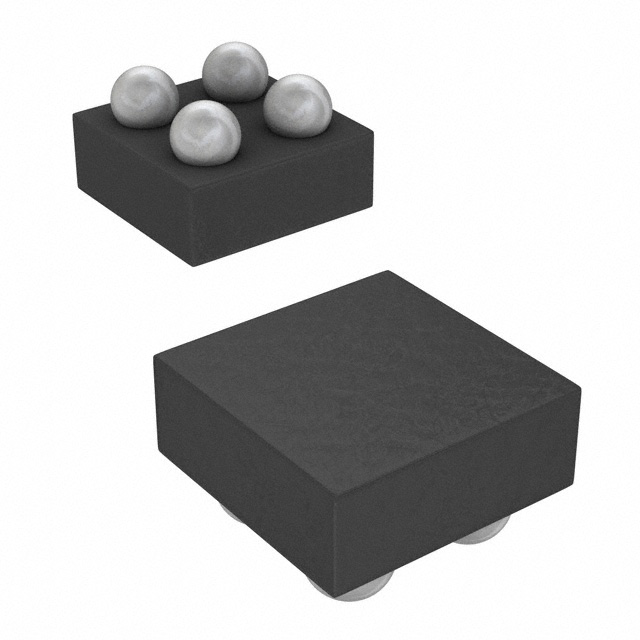

封装 WFBGA-4
封装 WFBGA-4
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
LP3990TL-2.8/NOPB TI 德州仪器 | 当前型号 | 当前型号 |
LP3990TLX-2.8/NOPB 德州仪器 | 类似代替 | LP3990TL-2.8/NOPB和LP3990TLX-2.8/NOPB的区别 |
LP3990TLX-2.8 德州仪器 | 类似代替 | LP3990TL-2.8/NOPB和LP3990TLX-2.8的区别 |
LP3990TL-2.8 德州仪器 | 功能相似 | LP3990TL-2.8/NOPB和LP3990TL-2.8的区别 |
