LM3674为2MHz ,采用SOT -23 600mA降压DC- DC转换器 LM3674 2MHz, 600mA Step-Down DC-DC Converter in SOT-23
降压 开关稳压器 IC 正 固定 1.5V 1 输出 600mA SC-74A,SOT-753
得捷:
IC REG BUCK 1.5V 600MA SOT23-5
立创商城:
降压型 Vin=2.7V~5.5V Vout=1.5V 600mA
德州仪器TI:
2MHz, 600mA Step-Down DC-DC Converter in SOT 23-5
贸泽:
开关稳压器 A 926-LM3674MFX15NOPB
艾睿:
Adjust the voltage level of your devices with this synchronous step down LM3674MF-1.5/NOPB DC to DC converter from Texas Instruments. This converter&s;s single output can produce a current up to 0.6 A. By only needing an input voltage of 2.7 V with a maximum of 5.5 V, this is the best way to control the power in your circuit. With a fixed output that has a voltage of 1.5 V, this is power management at its best. Users like the load regulation of 0.001%/mA and line regulation of 0.083%/VTyp. This part offers a switching frequency of 2000Typ kHz in order to work properly. This product will be shipped in tape and reel packaging for quick mounting and safe delivery. This converter has an operating temperature range of -30 °C to 85 °C.
Verical:
Conv DC-DC 2.7V to 5.5V Step Down Single-Out 1.5V 0.6A 5-Pin SOT-23 T/R
DeviceMart:
IC REG BUCK SYNC 1.5V SOT23-5
输出接口数 1
输出电压 1.5 V
输出电流 600 mA
静态电流 300 µA
调节输出数 1
开关频率 2 MHz
拓扑结构 Buck
输入电压Max 5.5 V
输入电压Min 2.7 V
输出电压Min 1.5 V
输出电流Max 0.6 A
工作温度Max 85 ℃
工作温度Min -30 ℃
输入电压 5.5 V
安装方式 Surface Mount
引脚数 5

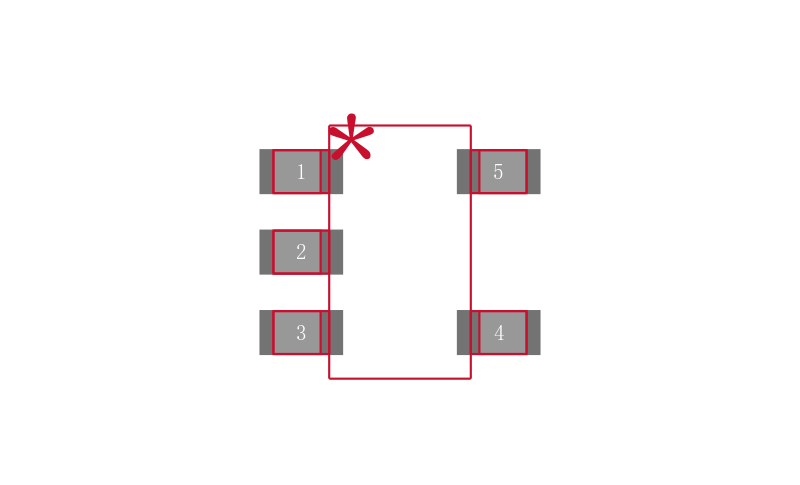

封装 SOT-23-5
封装 SOT-23-5
工作温度 -30℃ ~ 85℃ TA
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
LM3674MF-1.5/NOPB TI 德州仪器 | 当前型号 | 当前型号 |
LM3674MFX-1.5/NOPB 德州仪器 | 类似代替 | LM3674MF-1.5/NOPB和LM3674MFX-1.5/NOPB的区别 |
LM3674MF-1.5 德州仪器 | 类似代替 | LM3674MF-1.5/NOPB和LM3674MF-1.5的区别 |
ADP2108AUJZ-1.5-R7 亚德诺 | 功能相似 | LM3674MF-1.5/NOPB和ADP2108AUJZ-1.5-R7的区别 |
