LDO(低压降)线性电压稳压器,STMicroelectronics,高达 100mA### LDO(低压降)线性电压调节器,STMicroelectronics低压降或 LDO 为线性电压稳压器。 我们有多种系列的线性稳压器。 LDO 稳压器可在输入 - 输出差分电压较小时运行。 LDO 电压稳压器可提供快速瞬态响应、宽输入电压范围、低静态电流、低噪声、高 PSRR。
LDO(低压降)线性电压稳压器,STMicroelectronics,高达 100mA
### LDO(低压降)线性电压调节器,STMicroelectronics
低压降或 LDO 为线性电压稳压器。 我们有多种系列的线性稳压器。 LDO 稳压器可在输入 - 输出差分电压较小时运行。 LDO 电压稳压器可提供快速瞬态响应、宽输入电压范围、低静态电流、低噪声、高 PSRR。
得捷:
IC REG LINEAR 4.5V 100MA 8SO
欧时:
### LDO(低压降)线性电压稳压器,STMicroelectronics,高达 100mA### LDO(低压降)线性电压调节器,STMicroelectronics低压降或 LDO 为线性电压稳压器。 我们有多种系列的线性稳压器。 LDO 稳压器可在输入 - 输出差分电压较小时运行。 LDO 电压稳压器可提供快速瞬态响应、宽输入电压范围、低静态电流、低噪声、高 PSRR。
艾睿:
Use this LDO LE45CD-TR linear regulator from STMicroelectronics to vary your voltage levels to your desired level. Its typical dropout voltage at current is 0.2@100mA V. It has an overall accuracy of ±2 %. This voltage regulation device&s;s single output can produce a current up to 0.1 A. The best way to provide power to your application is by using this, which needs a voltage lower than 18 V. With a fixed output that has a voltage of 4.5 V, this is power management at its best. Using a load regulation of 25mV and line regulation of 30mV is needed for a programmable DC power supply. This product will be shipped in tape and reel packaging so that components can be mounted effectively. This voltage regulation device has an operating temperature range of -40 °C to 125 °C. The maximum dropout voltage is 0.4@100mA V. Its polarity is positive.
安富利:
LDO Regulator Pos 4.5V 0.1A 8-Pin SO N T/R
Chip1Stop:
LDO Regulator Pos 4.5V 0.1A 8-Pin SO N T/R
输出接口数 1
输入电压DC 18.0V max
输出电压 4.5 V
输出电流 100 mA
供电电流 1mA ~ 3mA
静态电流 1.5 mA
跌落电压 0.2V @100mA
输入电压Max 18 V
输出电压Min 4.5 V
输出电流Max 100 mA
工作温度Max 125 ℃
工作温度Min -40 ℃
精度 ±2 %
输入电压 18 V
安装方式 Surface Mount
引脚数 8

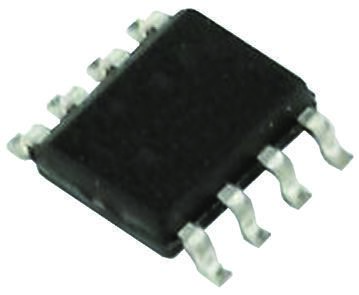

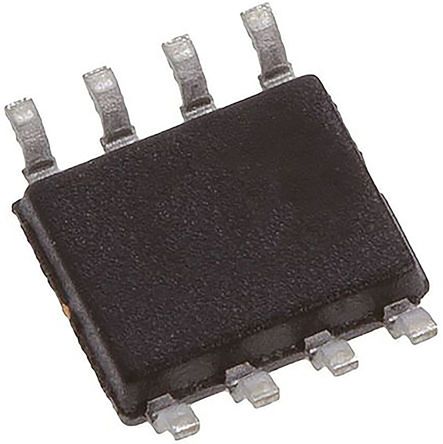

封装 SOIC-8
长度 5 mm
宽度 4 mm
高度 1.65 mm
封装 SOIC-8
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
LE45CD-TR ST Microelectronics 意法半导体 | 当前型号 | 当前型号 |
LE45CD 意法半导体 | 完全替代 | LE45CD-TR和LE45CD的区别 |
