800毫安固定和可调输出非常低的压差电压regulatorm 800mA Fixed and adjustable output very low drop voltage regulatorm
Don"t let unpredictable voltage levels ruin your circuit! Use this LDO linear regulator from STMicroelectronics to control your voltage levels! Its typical dropout voltage at current is 0.1@150mA|0.2@400mA|0.4@800mA V. It has an overall accuracy of ±1 %. This voltage regulation device"s single output can produce a current up to 0.8 A. It only needs a voltage that does not exceed 13 V to effectively power your circuit. With a fixed output that has a voltage of 2.5 V, this is power management at its best. At a load regulation of 1% and line regulation of 0.5% your circuit is capable of maintaining a constant voltage level at your output. This component will be shipped in tape and reel packaging for effective mounting and safe delivery. This voltage regulation device has a minimum operating temperature of -40 °C and a maximum of 125 °C. The maximum dropout voltage is 0.7@800mA V. Its polarity is positive.
输出接口数 1
输入电压DC 13.0V max
输出电压 2.5 V
输出电流 800 mA
静态电流 5 mA
跌落电压 0.4V @800mA
输入电压Max 13 V
输入电压Min 2.5 V
输出电流Max 0.8 A
工作温度Max 125 ℃
工作温度Min -40 ℃
精度 ±1 %
输入电压 ≤13 V
安装方式 Surface Mount
引脚数 5

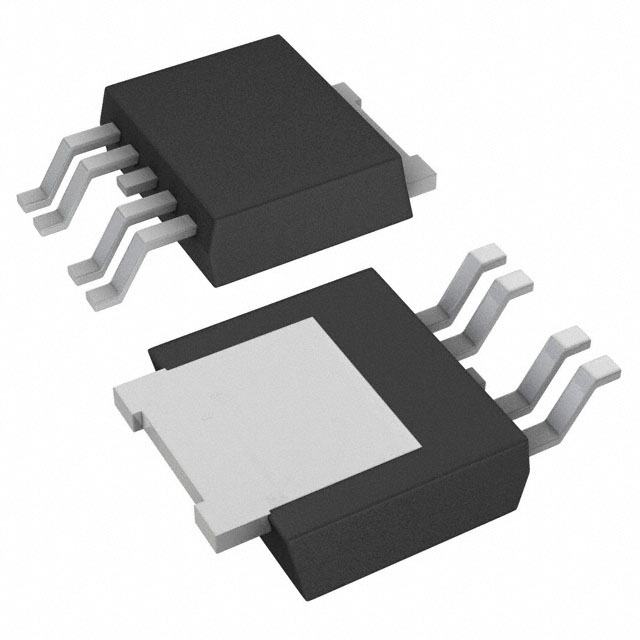

封装 TO-252-5
长度 6.6 mm
宽度 6.2 mm
高度 2.4 mm
封装 TO-252-5
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
