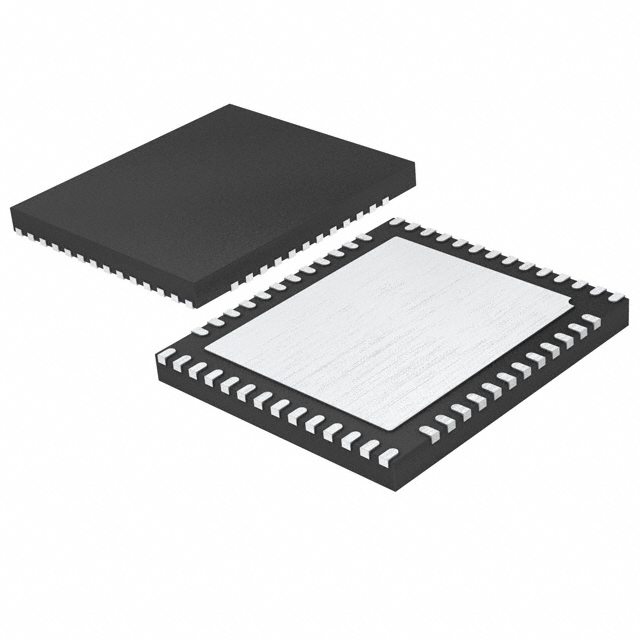

LTC2271IUKG#PBF

LINEAR TECHNOLOGY  LTC2271IUKG#PBF  模数转换器, 双路, 16 bit, 20 MSPS, 单, 1.7 V, 1.9 V, QFN

The is a 2-channel 16-bit serial low noise dual simultaneous sampling Analog-to-digital Converter ADC designed for digitizing high frequency, wide dynamic range signals. It is perfect for demanding communications applications with AC performance that includes 84.1dB SNR and 99dB spurious free dynamic range SFDR. To minimize the number of data lines the digital outputs are serial LVDS. Each channel outputs one bit, two bits or four bits at a time. The LVDS drivers have optional internal termination and adjustable output levels to ensure clean signal integrity. The ENC+ and ENC- inputs may be driven differentially or single-ended with a sine wave, PECL, LVDS, TTL or CMOS inputs. An internal clock duty cycle stabilizer allows high performance at full speed for a wide range of clock duty cycles.

.

Selectable input ranges - 1VP-P to 2.1VP-P

.

Shutdown and nap modes

.

Serial SPI port for configuration
