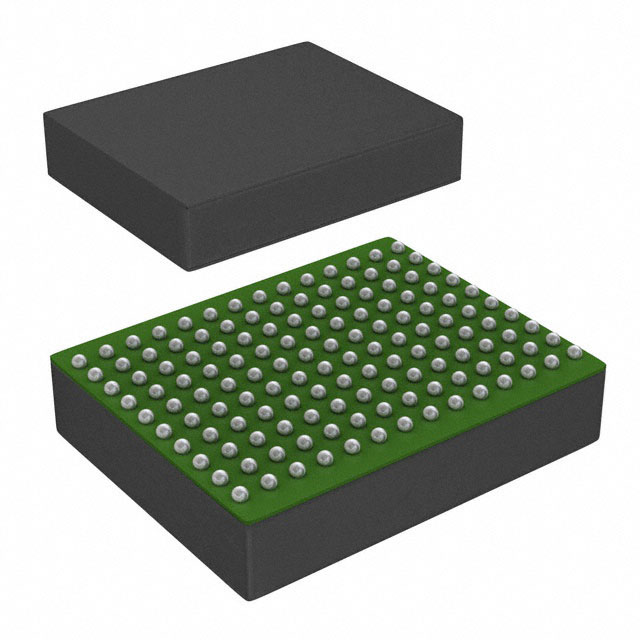

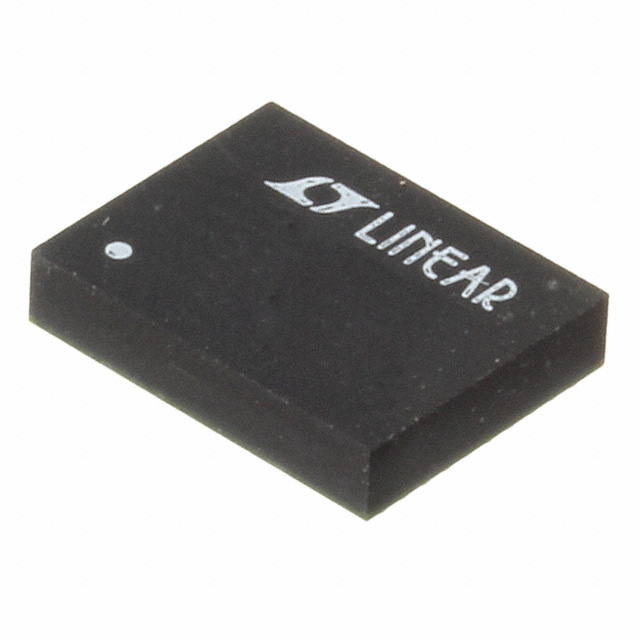

LTM9008CY-14#PBF

LINEAR TECHNOLOGY  LTM9008CY-14#PBF  模数转换器, 八路, 14 bit, 65 MSPS, 单, 1.7 V, 1.9 V, BGA

The is a 8-channel 14-bit simultaneous sampling Analog-to-digital Converter ADC designed for digitizing high frequency, wide dynamic range signals. AC performance includes 73dB SNR and 90dB spurious free dynamic range. Low power consumption per channel reduces heat in high channel count applications. Integrated bypass capacitance and flow through pin-out reduces overall board space requirements. The digital outputs are serial LVDS to minimize the number of data lines. Each channel outputs two bits at a time 2-lane mode. At lower sampling rates there is one bit per channel option 1-lane mode. The ENC+ and ENC- inputs may be driven differentially or single-ended with a sine wave, PECL, LVDS, TTL or CMOS inputs. An internal clock duty cycle stabilizer allows high performance at full speed for a wide range of clock duty cycles.

.

Serial LVDS outputs - 1 or 2-bit per channel

.

Shutdown and nap modes

.

Serial SPI port for configuration

.

Internal bypass capacitance, no external components

ESD sensitive device. Electrostatic charges as high as 4000V readily accumulate on the human body and test equipment and can discharge without detection.
