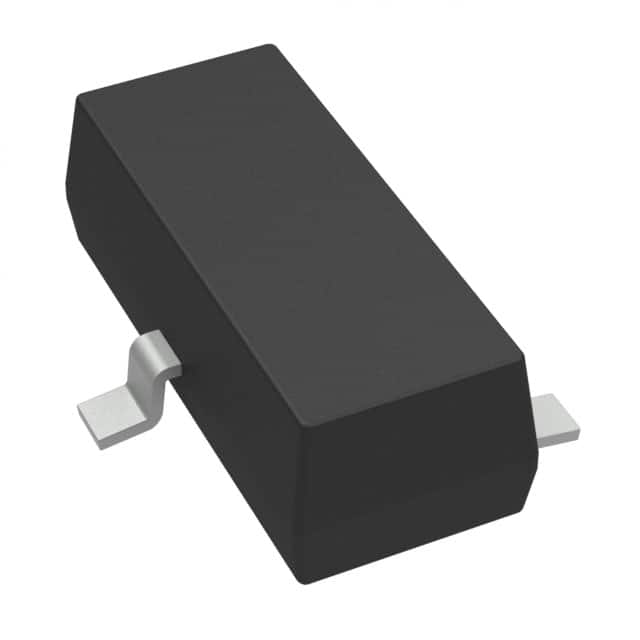

LM431CCM3X/NOPB

LM431可调式精密齐纳并联稳压器 LM431 Adjustable Precision Zener Shunt Regulator

Description

The LM431 is a 3-terminal adjustable shunt regulator with ensured temperature stability over the entire temperature range of operation. The output voltage may be set at any level greater than 2.5 V VREF up to 36 V merely by selecting two external resistors that act as a voltage divided network. Due to the sharp turnon characteristics this device is an excellent replacement for many Zener diode applications.

Features

1• Average Temperature Coefficient 50 ppm/°C

• Temperature Compensated for Operation Over the Full Temperature Range

• Programmable Output Voltage

• Fast Turnon Response

• Low-Output Noise

• Low-Dynamic Output Impedance

• Available in Space-Saving SOIC-8, SOT-23, and TO-92 Packages

Applications

• Adjustable Voltage or Current Linear and Switching Power Supplies

• Voltage Monitoring

• Current Source and Sink Circuits

• Circuits Requiring Precision References

• Zener Diode Replacements
