LP5900超低噪声, 150毫安线性稳压器,用于射频/模拟电路,无需旁路电容 LP5900 Ultra Low Noise, 150 mA Linear Regulator for RF/Analog Circuits Requires No Bypass Capacitor
PMIC - 稳压器 - 线性 正 固定 输出 150mA 4-DSBGA(1x1)
立创商城:

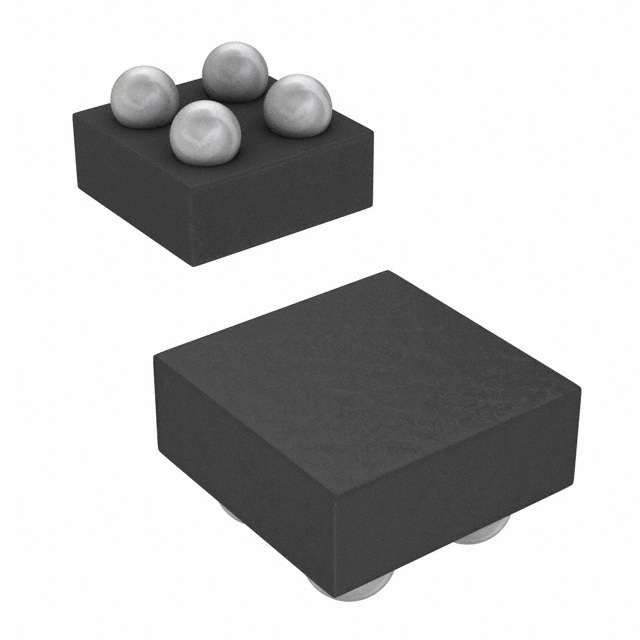

LP5900TL-2.7/NOPB
德州仪器TI:
150-mA, low-noise, low-IQ, low-dropout voltage regulator with enable
得捷:
IC REG LINEAR 2.7V 150MA 4DSBGA
艾睿:
Make a theoretical system actual by providing stable voltages with this LDO LP5900TL-2.7/NOPB linear regulator from Texas Instruments. It has an overall accuracy of ±2 %. Its typical dropout voltage at current is 0.08@150mA V. This voltage regulation device&s;s single output can produce a current up to 0.15 A. This will operate at a minimum voltage of 2.5 V and a maximum voltage of 5.5 V, making it easy to control the power in your circuit. With a fixed output that has a voltage of 2.7 V, this is power management at its best. Using a load regulation of 0.001%/mATyp and line regulation of 0.05%/VTyp is needed for a programmable DC power supply. This product will be shipped in tape and reel packaging so that components can be mounted effectively. This voltage regulation device has a minimum operating temperature of -40 °C and a maximum of 85 °C. The maximum dropout voltage is 0.15@150mA V. Its polarity is positive.
安富利:
LDO Regulator Pos 2.7V 0.15A 4-Pin uSMD T/R
Chip1Stop:
LDO Regulator Pos 2.7V 0.15A 4-Pin DSBGA T/R
Verical:
LDO Regulator Pos 2.7V 0.15A 4-Pin DSBGA T/R
DeviceMart:
IC REG LDO 2.7V .15A 4MICROSMD
输出接口数 1
输出电压 2.7 V
输出电流 150 mA
静态电流 25.0 µA
输出电容类型 Ceramic
跌落电压 0.08V @150mA
调节输出数 1
输入电压Max 5.5 V
输入电压Min 2.5 V
输出电流Max 0.15 A
工作温度Max 85 ℃
工作温度Min -40 ℃
精度 ±2 %
输入电压 ≤5.5 V
安装方式 Surface Mount
引脚数 4
封装 WFBGA-4
封装 WFBGA-4
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
LP5900TL-2.7/NOPB TI 德州仪器 | 当前型号 | 当前型号 |
LP5900TLX-2.7/NOPB 德州仪器 | 类似代替 | LP5900TL-2.7/NOPB和LP5900TLX-2.7/NOPB的区别 |
