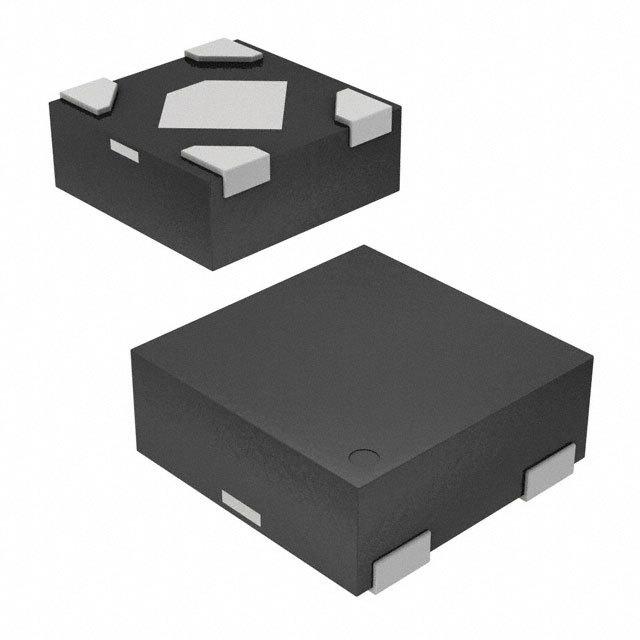

LD39020 系列 200 mA 3.1 V 高精度 线性 稳压器 IC - DFN-4
PMIC - 稳压器 - 线性 正 固定 1 输出 200mA 4-DFN(1x1)
得捷:
IC REG LINEAR 3.1V 200MA 4DFN
艾睿:
Use the LDO LD39020DTPU31R linear regulator from STMicroelectronics to maintain a constant output voltage. It has an overall accuracy of ±2 %. Its typical dropout voltage at current is 0.035@30mA|0.2@200mA V. This voltage regulation device&s;s single output can produce a current up to 0.2 A. With a small input voltage of 1.5 V and a max of 5.5 V, this will supply sufficient power to your circuit. With a fixed output that has a voltage of 3.1 V, this is power management at its best. By operating at a load regulation of 10mVTyp and line regulation of 0.02%/VTyp you can provide a constant voltage at your output. This product will be shipped in tape and reel packaging so that components can be mounted effectively. This voltage regulation device has a minimum operating temperature of -40 °C and a maximum of 125 °C. Its polarity is positive. The maximum dropout voltage is 0.35@200mA V.
安富利:
LDO Regulator Pos 3.1V 0.2A 4-Pin DFN T/R
富昌:
LD39020 Series 200 mA 3.1 V High Accuracy Linear Regulator IC - DFN-4
Chip1Stop:
LDO Regulator Pos 3.1V 0.2A 4-Pin DFN EP T/R
Verical:
LDO Regulator Pos 3.1V 0.2A 4-Pin DFN EP T/R
输出接口数 1
输出电压 3.1 V
输出电流 200 mA
供电电流 40 µA
静态电流 40 µA
跌落电压 0.035V @30mA
输入电压Max 5.5 V
输入电压Min 1.5 V
输出电压Min 3.1 V
输出电流Max 0.2 A
工作温度Max 125 ℃
工作温度Min -40 ℃
精度 ±2 %
输入电压 5.5 V
安装方式 Surface Mount
引脚数 4
封装 DFN-4
封装 DFN-4
工作温度 -40℃ ~ 125℃ TJ
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
