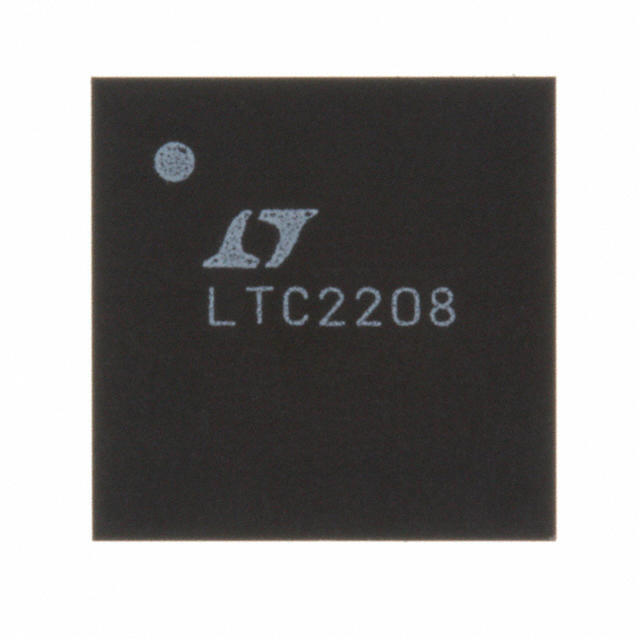

LINEAR TECHNOLOGY LTC2208IUP#PBF Analog to Digital Converter, 16Bit, 130MSPS, Single, 3.135V, 3.465V, QFN
Use this specially engineered ADC from to easily convert a time-varying analog signal to a digital number representation of the amplitude of that signal. It has a differential input signal. This device is based on Pipelined architecture. Its maximum power dissipation is 1782 mW. This device"s digital interface is parallel|lvds. This ADC has a resolution of 16bit. This ADC has an input voltage of 1.5 Vp-p/2.25Vp-p. This ADC has a minimum operating temperature of -40 °C and a maximum of 85 °C.
电源电压DC 3.13V min
供电电流 380 mA
电路数 1
位数 16
耗散功率 1498 mW
采样率 130 MHz
模数转换数ADC 1
输入数 1
工作温度Max 85 ℃
工作温度Min -40 ℃
耗散功率Max 1782 mW
输入通道数 1
电源电压Max 3.465 V
电源电压Min 3.135 V
安装方式 Surface Mount
引脚数 64

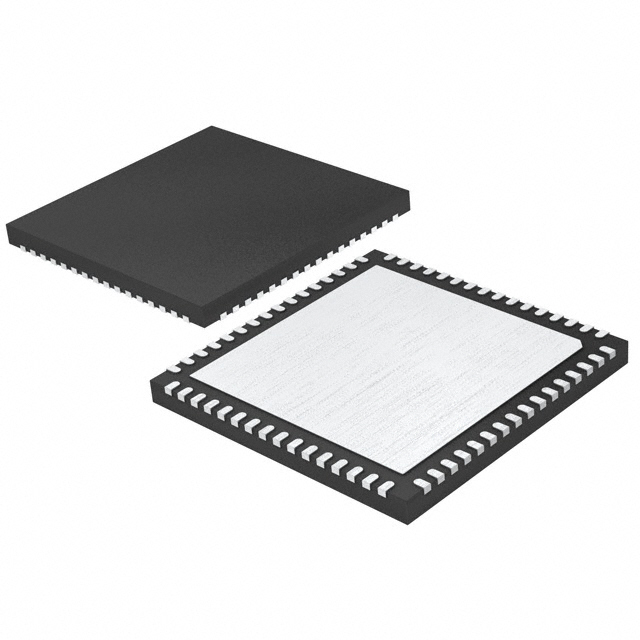

封装 QFN-64
长度 9 mm
宽度 9 mm
高度 0.75 mm
封装 QFN-64
工作温度 -40℃ ~ 85℃
产品生命周期 Unknown
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/12/17
ECCN代码 3A001.a.5.a.5
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
LTC2208IUP#PBF Linear Technology 凌力尔特 | 当前型号 | 当前型号 |
LTC2208CUP 凌力尔特 | 完全替代 | LTC2208IUP#PBF和LTC2208CUP的区别 |
LTC2208IUP 凌力尔特 | 类似代替 | LTC2208IUP#PBF和LTC2208IUP的区别 |
LTC2215IUP#TRPBF 凌力尔特 | 功能相似 | LTC2208IUP#PBF和LTC2215IUP#TRPBF的区别 |
