超低压降低噪声BICMOS稳压器低ESR电容兼容 ULTRA LOW DROP-LOW NOISE BICMOS VOLTAGE REGULATORS LOW ESR CAPACITORS COMPATIBLE
Description
The LD3985xx provides up to 150 mA, from 2.5 V to 6 V input voltage. The ultra low drop-voltage, low quiescent current and low noise make it suitable for low power applications and in battery powered systems. Regulator ground current increases only slightly in dropout, further prolonging the battery life. Power supply rejection is better than 60 dB at low frequencies and starts to roll off at 10 kHz. High power supply rejection is maintained down to low input voltage levels common to battery operated circuits. Shutdown logic control function is available, this means that when the device is used as local regulator, it is possible to put a part of the board in standby, decreasing the total power consumption. The LD3985xx is designed to work with low ESR ceramic capacitors. Typical applications are in mobile phone and similar battery powered wireless systems.
Features
■ Input voltage from 2.5 V to 6 V
■ Stable with low ESR ceramic capacitors
■ Ultra low dropout voltage 60 mV typ. at 150 mA load, 0.4 mV typ. at 1 mA load
■ Very low quiescent current 85 µA typ. at no load, 170 µA typ. at 150 mA load; max 1.5 µA in OFF mode
■ Guaranteed output current up to 150 mA
■ Wide range of output voltage: 1.22 V; 1.8 V; 2.5 V; 2.6 V; 2.7 V; 2.8 V; 2.9 V; 3 V; 3.3 V; 4.7 V
■ Fast turn-on time: typ. 200 µs [CO = 1 µF, CBYP = 10 nF and IO = 1 mA]
■ Logic-controlled electronic shutdown
■ Internal current and thermal limit
■ Output low noise voltage 30 µVRMS over 10 Hz to 100 kHz
■ SVR of 60 dB at 1 kHz, 50 dB at 10 kHz
■ Temperature range: - 40 °C to 125 °C
输出接口数 1
输入电压DC 6.00V max
输出电压 2.5 V
输出电流 150 mA
跌落电压 0.1V @150mA
输入电压Max 6 V
输入电压Min 2.5 V
工作温度Max 125 ℃
工作温度Min -40 ℃
精度 ±2 %
输入电压 ≤6 V
安装方式 Surface Mount
引脚数 5

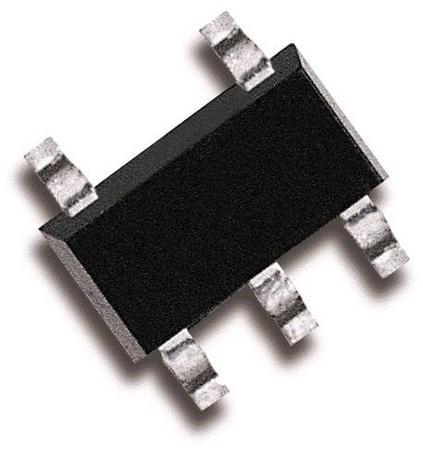

封装 TSOT-23-5
长度 2.9 mm
宽度 1.6 mm
高度 1 mm
封装 TSOT-23-5
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Contains Lead
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
LD3985G25R ST Microelectronics 意法半导体 | 当前型号 | 当前型号 |
LD3985M25R 意法半导体 | 类似代替 | LD3985G25R和LD3985M25R的区别 |
LD3985J25R 意法半导体 | 类似代替 | LD3985G25R和LD3985J25R的区别 |
LP3999ITLX-2.5/NOPB 德州仪器 | 功能相似 | LD3985G25R和LP3999ITLX-2.5/NOPB的区别 |
