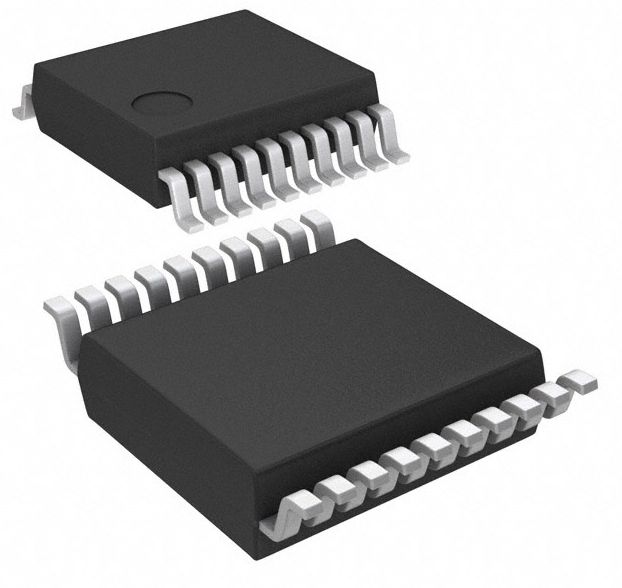

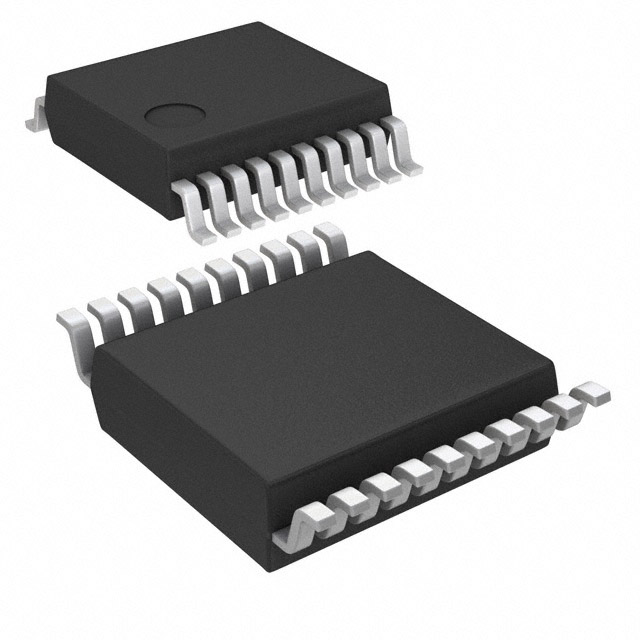

LV8805SV-TLM-H

3相无刷风扇马达驱动器不带传感器

LV8805SV is a 3-phase sensorless motor driver IC. 3-phase driver allows low power consumption and low vibration. And Hall sensorless drive allows reduction of the size of a motor system. This IC is suitable for use in products which require high reliability and long life such as server fan and refrigerator fan.

Features |   | Benefits

---|---|---

 | |  | |  |

.

Direct PWM three-phase sensorless motor driver

|   |

.

Easy Manufacturing

.

Built-in current limit circuit Operates when RF resistance is 0.25Ω and Io=1A

|   |

.

Current Protection

.

Built-in lock protection and auto-recovery circuit

|   |

.

Destruction protection

.

Built-in TSD thermal shutdown circuit

|   |

.

Thermal Protection

.

Direct PWM signal input for speed control PWMIN pin

|   |

.

High Efficiency

.

Soft-Booting

|   |

.

Stability at booting

.

Soft-Switching

|   |

.

Silent

.

Built-in Beat Lock Protection

|   |

.

Beat Lock Protection

.

1chip Driver

|   |

.

Easy Manufacturing

.

NchDMOS output transistor

|   |

.

FG rotation count output signal pin / RD lock detection output signal pin

|   |

.

Motor startup with soft-start SOFTST pin

|   |

.

12V-system Vccmax=16V

|   |
