LM337KCSE3

Texas InstrumentsTexas Instruments 固定和可调线性电压调节器系列。 该系列包括正极和负极设备，输出电流额定值从 100mA 到 5A。

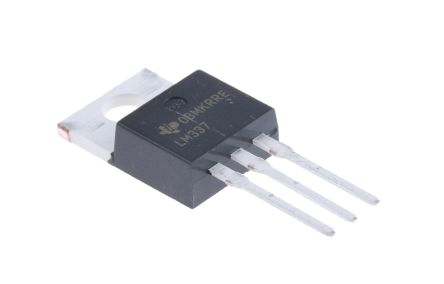

LM337 线性稳压器，Texas Instruments

**Texas Instruments LM337** 可调负电压稳压器在 –1.2 V 到 –37 V 输出电压范围内提供 1.5A 电流额定值（LM337L 型号为 100mA）。 线性稳压器仅需两个外部电阻器即可调节输出电压，且需要一个电容器，用于频率补偿。

.

*LM317** 1.5 A，**LM317L** 0.1 A

波纹抑制 77 dB 到 80 dB（典型）

### 线性稳压器，Texas Instruments

Texas Instruments 固定和可调线性稳压器系列。 该系列包括正极和负极设备，输出电流额定值从 100mA 到 5A。

得捷:
IC REG LIN NEG ADJ 1.5A TO220-3

立创商城:
负 Vin=40V Vout=37V~1.2V 1.5A 77dB@120Hz

德州仪器TI:
1.5-A, negative, adjustable linear voltage regulator

欧时:
### LM337 线性稳压器，Texas Instruments**Texas Instruments LM337** 可调负电压稳压器在 –1.2 V 到 –37 V 输出电压范围内提供 1.5A 电流额定值（LM337L 型号为 100mA）。 线性稳压器仅需两个外部电阻器即可调节输出电压，且需要一个电容器，用于频率补偿。 输出电流：**LM317** 1.5 A，**LM317L** 0.1 A 波纹抑制 77 dB 到 80 dB（典型） ### 线性稳压器，Texas InstrumentsTexas Instruments 固定和可调线性稳压器系列。 该系列包括正极和负极设备，输出电流额定值从 100mA 到 5A。

艾睿:
Stable power is ideal for better processing this LDO LM337KCSE3 linear regulator developed by Texas Instruments will help do so. This voltage regulation device&s;s single output can produce a current up to 1.5 A. Using the part will provide the power your application needs by requiring a voltage only of -4.2 V and not exceeding a voltage of -40 V. With an adjustable output that has a voltage of -1.2 to -37 V, this is power management at its best. Maintain a constant voltage level with a load regulation of 1% and line regulation of 0.04%/V. In order to ensure parts aren&s;t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. The maximum dropout voltage is 3@1.5A V. This voltage regulation device has an operating temperature range of 0 °C to 125 °C. Its polarity is negative.

安富利:
LDO Regulator Neg -1.2V to -37V 1.5A 3-Pin3+Tab TO-220 Tube

Chip1Stop:
LDO Regulator Neg -1.2V to -37V 1.5A 3-Pin3+Tab TO-220 Tube

Verical:
Standard Regulator Neg -1.2V to -37V 1.5A 3-Pin3+Tab TO-220 Tube

Newark:
# TEXAS INSTRUMENTS  LM337KCSE3  Linear Voltage Regulator, Adjustable, -40V to -3V input, -1.2V to -37V/1.5A out, TO-220-3

DeviceMart:
IC REG LDO NEG ADJ 1.5A TO-220

Win Source:
Linear Voltage Regulator IC Negative Adjustable 1 Output -1.2 V ~ -37 V 1.5A TO-220-3
