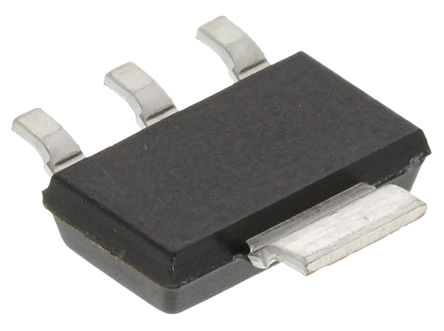

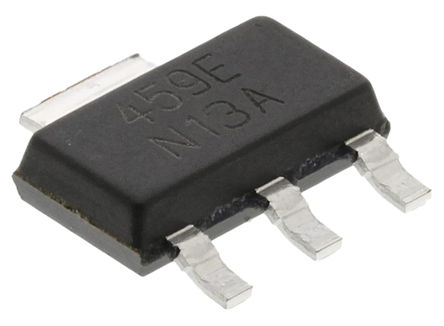

TEXAS INSTRUMENTS LM1117MP-2.5/NOPB 稳压器, 固定LDO, 15V输入, 1.2V压差, 2.5V/800mA输出, SOT-223-3
LDO(低压降)线性稳压器,600mA 至 800mA,Texas Instruments
欧时:
### LDO(低压降)线性电压调节器,600mA 至 800mA,Texas Instruments### LDO(低压降)线性电压调节器,Texas Instruments低压降或 LDO 为线性电压稳压器。 我们有多种系列的线性稳压器。 LDO 稳压器可在输入 - 输出差分电压较小时运行。 LDO 电压稳压器可提供快速瞬态响应、宽输入电压范围、低静态电流、低噪声、高 PSRR。
得捷:
IC REG LINEAR 2.5V 800MA SOT223
立创商城:
Linear regulation
德州仪器TI:
800-mA 15-V linear voltage regulator
e络盟:
TEXAS INSTRUMENTS LM1117MP-2.5/NOPB 稳压器, 固定LDO, 15V输入, 1.2V压差, 2.5V/800mA输出, SOT-223-3
艾睿:
If you need to maintain a steady voltage on your circuit, then this LDO LM1117MP-2.5/NOPB linear regulator from Texas Instruments is perfect for you! Its typical dropout voltage at current is 1.1@100mA|1.15@500mA|1.2@800mA V. It has an overall accuracy of ±1 %. This voltage regulation device&s;s single output can produce a current up to 0.8 A. It only needs a voltage that does not exceed 15 V to effectively power your circuit. With a fixed output that has a voltage of 2.5 V, this is power management at its best. At a load regulation of 1mVTyp and line regulation of 1mVTyp a constant current can be produced at the output of your circuit. Tape and reel packaging will encase this product during shipment, in order to ensure safe delivery and enable quick mounting of components. Its polarity is positive. This voltage regulation device has an operating temperature range of 0 °C to 125 °C. The maximum dropout voltage is 1.2@100mA|1.25@500mA|1.3@800mA V.
安富利:
LDO Regulator Pos 2.5V 0.8A 4-Pin3+Tab SOT-223 T/R
Chip1Stop:
LDO Regulator Pos 2.5V 0.8A 4-Pin3+Tab SOT-223 T/R
TME:
Voltage regulator; LDO, fixed; 2.5V; 0.8A; SOT223; SMD; Channels:1
Verical:
LDO Regulator Pos 2.5V 0.8A 4-Pin3+Tab SOT-223 T/R
Newark:
# TEXAS INSTRUMENTS LM1117MP-2.5/NOPB Fixed LDO Voltage Regulator, 15V in, 1.2V Dropout, 2.5V/800mA out, SOT-223-3
DeviceMart:
IC REG LDO 2.5V .8A SOT-223
Win Source:
Linear Voltage Regulator IC Positive Fixed 1 Output 2.5V 800mA SOT-223
电源电压DC 15.0 V
工作电压 1.25V ~ 15V
额定电流 800 A
输出接口数 1
输出电压 2.5 V
输出电流 800 mA
供电电流 5mA ~ 10mA
通道数 1
针脚数 3
静态电流 5.00 mA
输出电容类型 Tantalum
跌落电压 1.2 V
调节输出数 1
输入电压Max 15 V
输入电压Min 2.6 V
输出电压Min 2.5 V
输出电流Max 800 mA
工作温度Max 125 ℃
工作温度Min 0 ℃
精度 ±1 %
输入电压 15 V
安装方式 Surface Mount
引脚数 3
封装 TO-261-4
长度 6.5 mm
宽度 3.56 mm
高度 1.6 mm
封装 TO-261-4
工作温度 0℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 电源管理
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
LM1117MP-2.5/NOPB TI 德州仪器 | 当前型号 | 当前型号 |
LM1117MPX-2.5/NOPB 德州仪器 | 类似代替 | LM1117MP-2.5/NOPB和LM1117MPX-2.5/NOPB的区别 |
LM1117MPX-2.5 德州仪器 | 类似代替 | LM1117MP-2.5/NOPB和LM1117MPX-2.5的区别 |
NCP1117ST50T3G 安森美 | 功能相似 | LM1117MP-2.5/NOPB和NCP1117ST50T3G的区别 |
