LINEAR TECHNOLOGY LTM9010IY-14#PBF 模数转换器, 14 bit, 105 MSPS, 单, 1.7 V, 1.9 V, BGA
The is a 8-channel 14-bit simultaneous sampling Analog-to-digital Converter ADC designed for digitizing high frequency, wide dynamic range signals. AC performance includes 73.1dB SNR and 88dB spurious free dynamic range. Low power consumption per channel reduces heat in high channel count applications. Integrated bypass capacitance and flow-through pin-out reduces overall board space requirements. The digital outputs are serial LVDS to minimize the number of data lines. Each channel outputs two bits at a time 2-lane mode. At lower sampling rates there is one bit per channel option 1-lane mode. The ENC+ and ENC- inputs may be driven differentially or single-ended with a sine wave, PECL, LVDS, TTL or CMOS inputs. An internal clock duty cycle stabilizer allows high performance at full speed for a wide range of clock duty cycles.
供电电流 476 mA
电路数 8
通道数 8

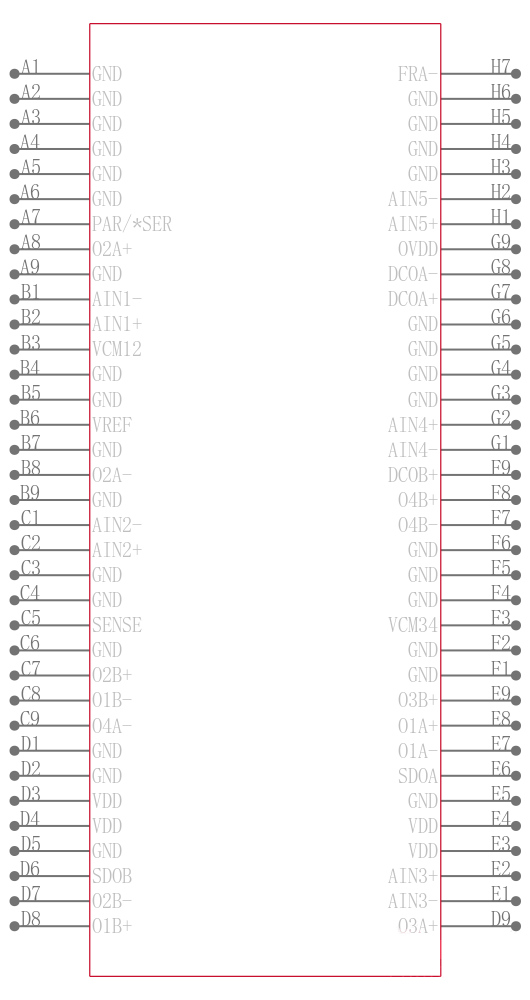

针脚数 140
位数 14
采样率 105 Msps
输入数 8
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压 1.7V ~ 1.9V
电源电压Max 1.9 V
电源电压Min 1.7 V
安装方式 Surface Mount
引脚数 140

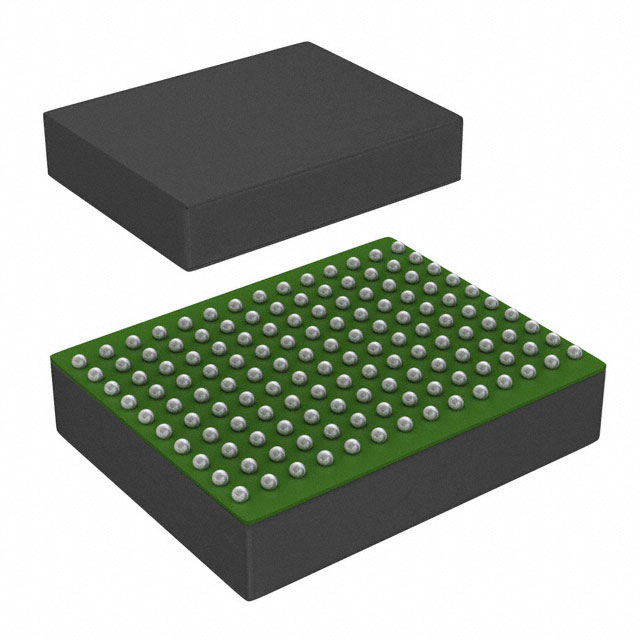

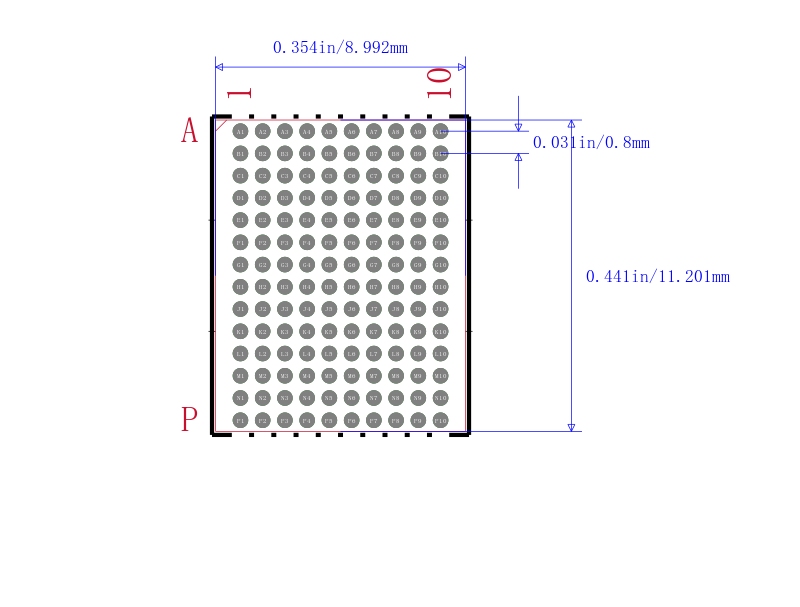

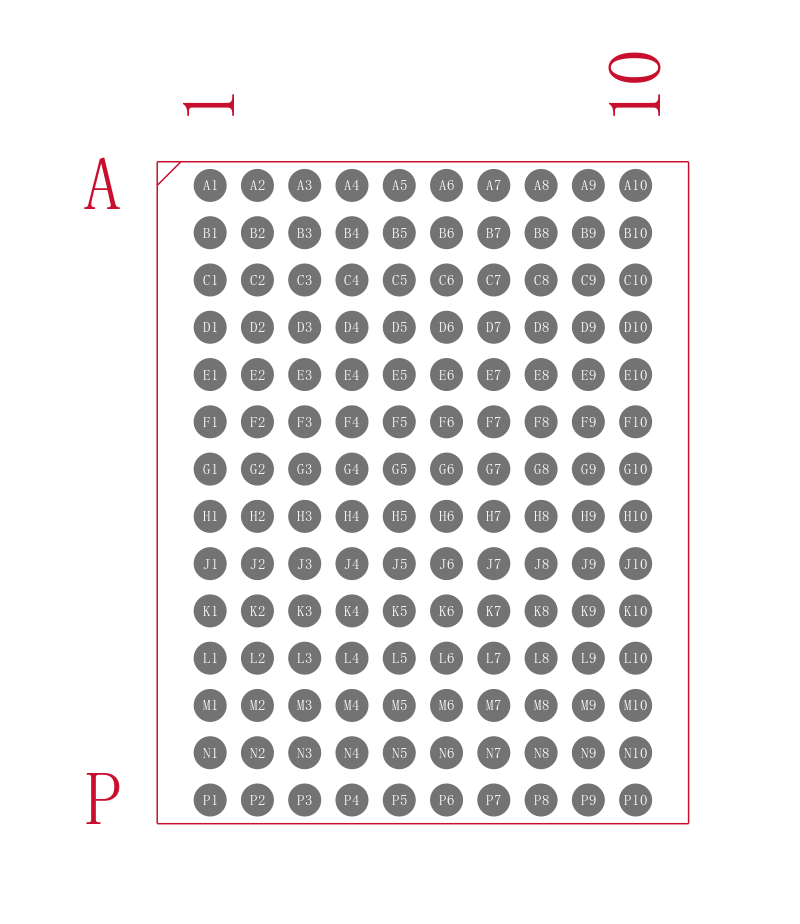

封装 BGA-140
封装 BGA-140
工作温度 -40℃ ~ 85℃
产品生命周期 Unknown
包装方式 Each
制造应用 Test & Measurement, 射频通信, 便携式器材, Medical, 成像, 视频和目视, Portable Devices, 通信与网络, Automation & Process Control, 自动化与过程控制, Communications & Networking, 医用, Imaging, Video & Vision, 测试与测量, RF Communications
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
LTM9010IY-14#PBF Linear Technology 凌力尔特 | 当前型号 | 当前型号 |
LTM9008CY-14#PBF 凌力尔特 | 类似代替 | LTM9010IY-14#PBF和LTM9008CY-14#PBF的区别 |
LTM9010CY-14#PBF 凌力尔特 | 类似代替 | LTM9010IY-14#PBF和LTM9010CY-14#PBF的区别 |
