LMS8117AMP-1.8/NOPB

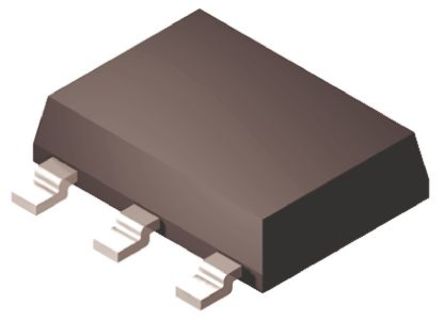

TEXAS INSTRUMENTS  LMS8117AMP-1.8/NOPB  固定电压稳压器, LDO, 2.5V至15V, 1.2V压差, 1.8V输出, 1A输出, SOT-223-3

LDO（低压降）线性稳压器，1A，LM29xx/LM39xx/LMS81xx 系列，Texas Instruments

得捷:
IC REG LINEAR 1.8V 1A SOT223

立创商城:
LMS8117AMP-1.8/NOPB

德州仪器TI:
1-A, 15-V, linear voltage regulator from 0°C to 125°C

欧时:
Texas Instruments LMS8117AMP-1.8/NOPB LDO 稳压器, 1.8 V输出, 1A最大输出, ±1%精确度, 2.5 → 15 V输入

贸泽:
LDO Voltage Regulators 1A LDO Linear Reg

e络盟:
固定电压稳压器, LDO, 2.5V至15V, 1.2V压差, 1.8V输出, 1A输出, SOT-223-3

艾睿:
This LDO LMS8117AMP-1.8/NOPB linear regulator from Texas Instruments is used to manipulate the voltage level of your circuit. It has an overall accuracy of ±1 %. Its typical dropout voltage at current is 1.1@100mA|1.15@500mA|1.2@1A V. This voltage regulation device&s;s single output can produce a current up to 1 A. Supply your circuit with sufficient power by implementing this, which requires a minimum input voltage of 2.5 V that does not exceed 15 V. With a fixed output that has a voltage of 1.8 V, this is power management at its best. Using a load regulation of 1mVTyp and line regulation of 1mVTyp is needed for a programmable DC power supply. This component will be shipped in tape and reel packaging for effective mounting and safe delivery. Its polarity is positive. The maximum dropout voltage is 1.15@100mA|1.2@500mA|1.25@1A V. This voltage regulation device has an operating temperature range of 0 °C to 125 °C.

安富利:
LDO Regulator Pos 1.8V 1A 4-Pin3+Tab SOT-223 T/R

Verical:
LDO Regulator Pos 1.8V 1A 4-Pin3+Tab SOT-223 T/R

Newark:
# TEXAS INSTRUMENTS  LMS8117AMP-1.8/NOPB  Fixed LDO Voltage Regulator, 2.5V to 15V, 1.2V Dropout, 1.8Vout, 1Aout, SOT-223-3

DeviceMart:
IC REG LDO 1.8V 1A SOT-223

Win Source:
Linear Voltage Regulator IC Positive Fixed 1 Output 1.8V 1A SOT-223
