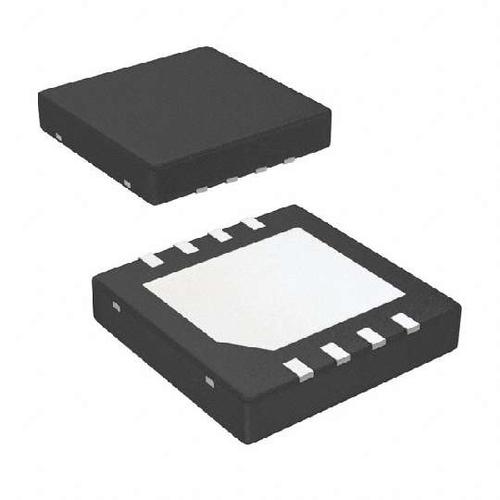

TEXAS INSTRUMENTS LP2951CSD-3.3/NOPB 固定电压稳压器, LDO, -300 mV至30V, 380mV压差, 3.3V输出, 100mA输出, WSON-8
The is a 3.3V fixed output low-dropout LDO Linear Regulator with very low quiescent current 75µA typical and very low-dropout LDO voltage typical 40mV at light loads and 380mV at 100mA. This device is ideally suited for use in battery-powered systems. Furthermore, the quiescent current of the device increases only slightly in dropout, prolonging battery life. Careful design of the device has minimized all contributions to the error budget. This includes a tight initial tolerance 0.5% typical, extremely good load and line regulation 0.05% typical and a very low output voltage temperature coefficient, making the part useful as a low-power voltage reference. One such feature is an error flag output which warns of a low output voltage, often due to falling batteries on the input. It may be used for a power-ON reset. A second feature is the logic-compatible shutdown input which enables the regulator to be switched on and off.
输出接口数 1
输出电压 3.3 V
输出电流 100 mA
供电电流 120µA ~ 14mA
针脚数 8
静态电流 75.0 µA
输出电容类型 Ceramic
跌落电压 380 mV
调节输出数 1
输入电压Max 30 V
输入电压Min 2.3 V
输出电压Min 3.3 V
输出电流Max 0.1 A
工作温度Max 125 ℃
工作温度Min -40 ℃
输入电压 30 V
安装方式 Surface Mount
引脚数 8
封装 WSON-8
封装 WSON-8
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 工业, 电源管理
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
LP2951CSD-3.3/NOPB TI 德州仪器 | 当前型号 | 当前型号 |
LP2951ACSD-3.3 德州仪器 | 完全替代 | LP2951CSD-3.3/NOPB和LP2951ACSD-3.3的区别 |
LP2951CSDX-3.3/NOPB 德州仪器 | 类似代替 | LP2951CSD-3.3/NOPB和LP2951CSDX-3.3/NOPB的区别 |
LP2951CSD-3.3 德州仪器 | 类似代替 | LP2951CSD-3.3/NOPB和LP2951CSD-3.3的区别 |
